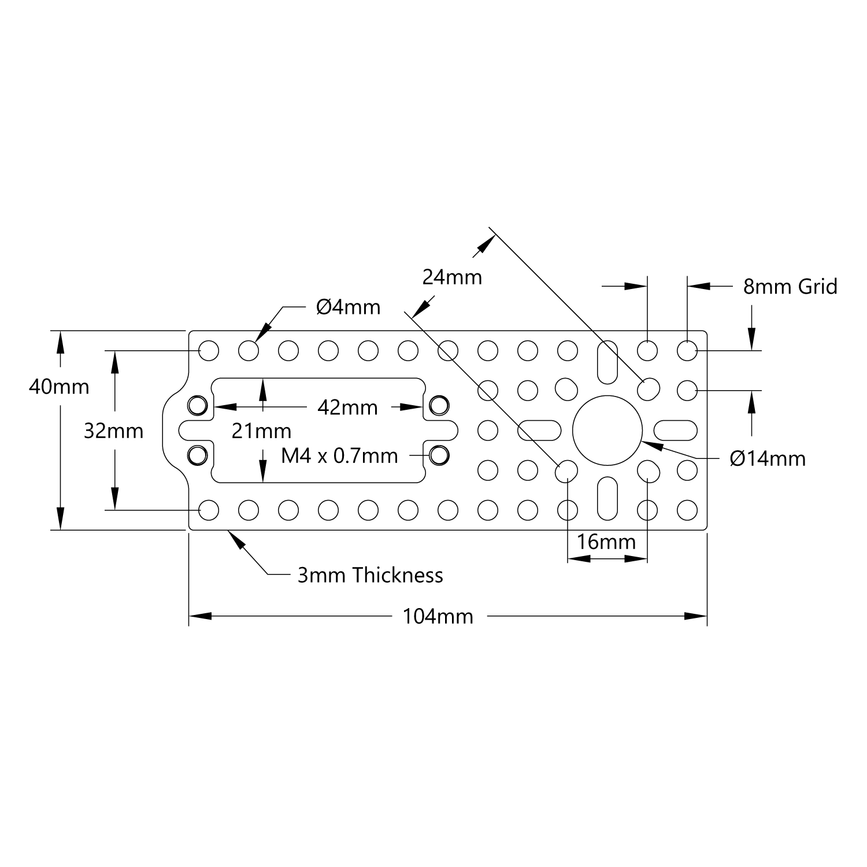

1800 Series Servo Pattern Plate (For Standard Size Servos)

SKU:
$5.99

This plate is built to house a standard size servo and space the output spline of the servo 48mm away from the center of the pattern at the end of the plate. This gives you the ability to install a gear on the servo and drive a spur gear that’s centered on the pattern.

Downloads

Specs

Weight 28g
Material Aluminum
Finish Clear Anodized
Servo Compatibility Standard Size
Included Hardware - Screws 8mm Length M4 Screws (4 screws)
Included Hardware - Washers 4mm ID x 8mm OD Washers (4 washers)
