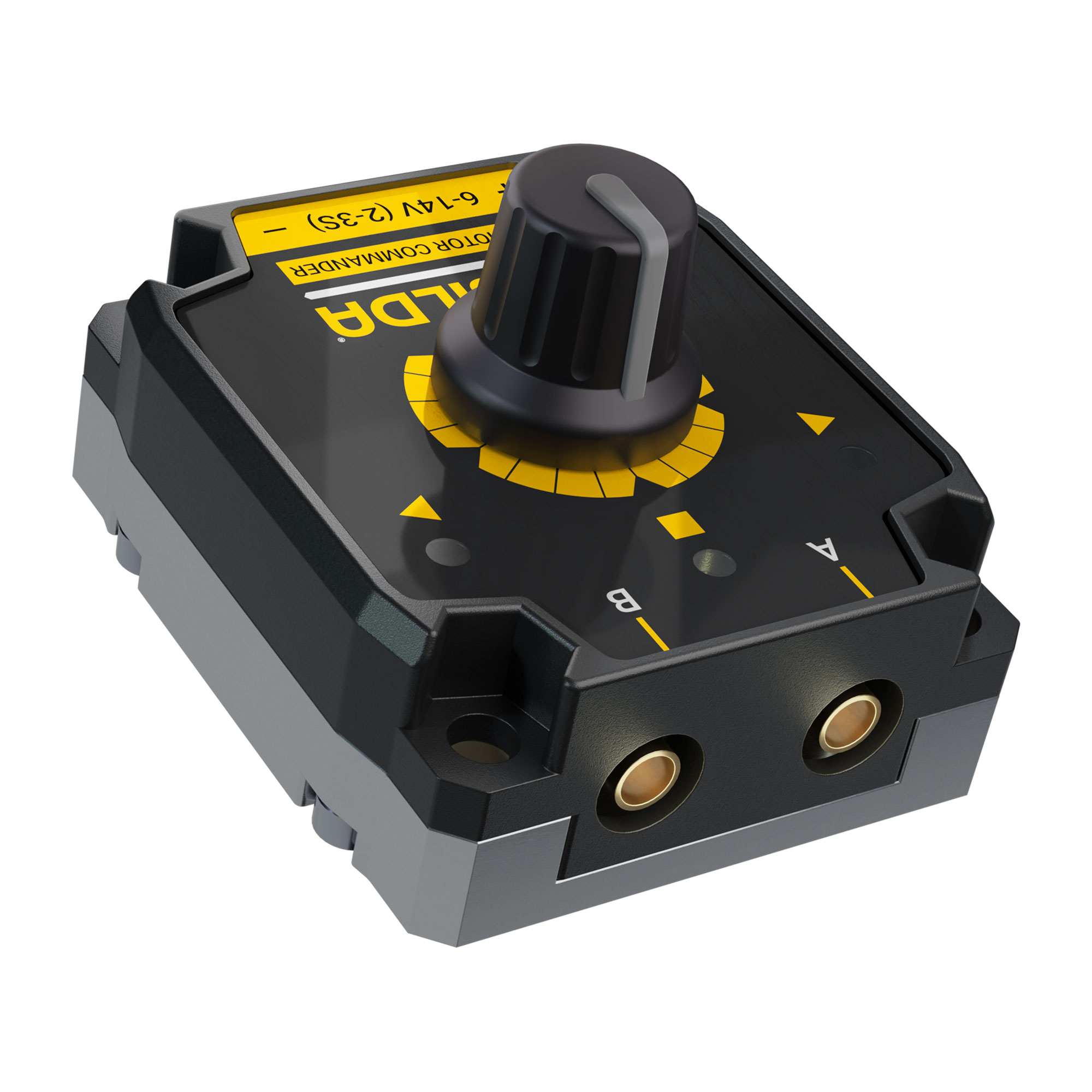

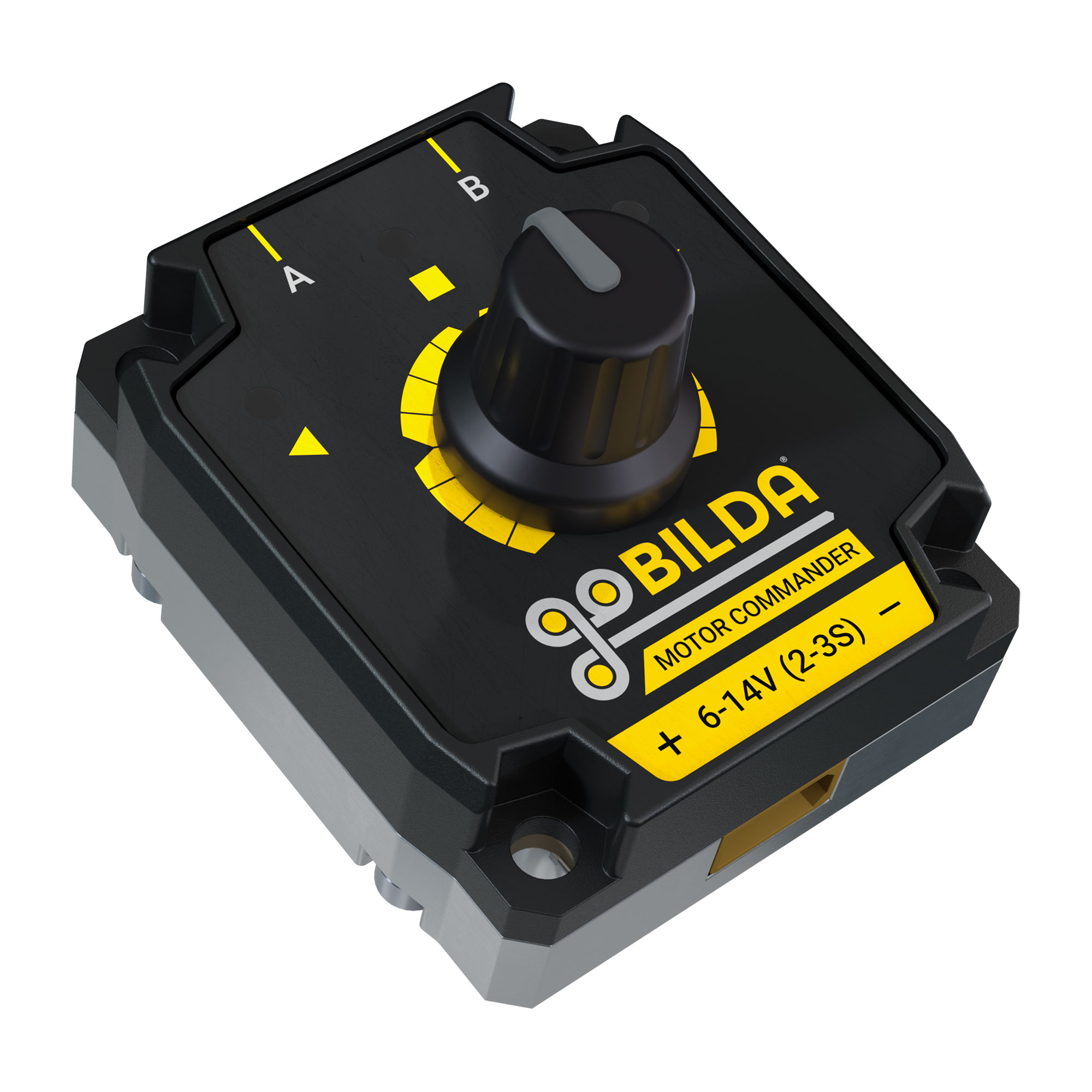

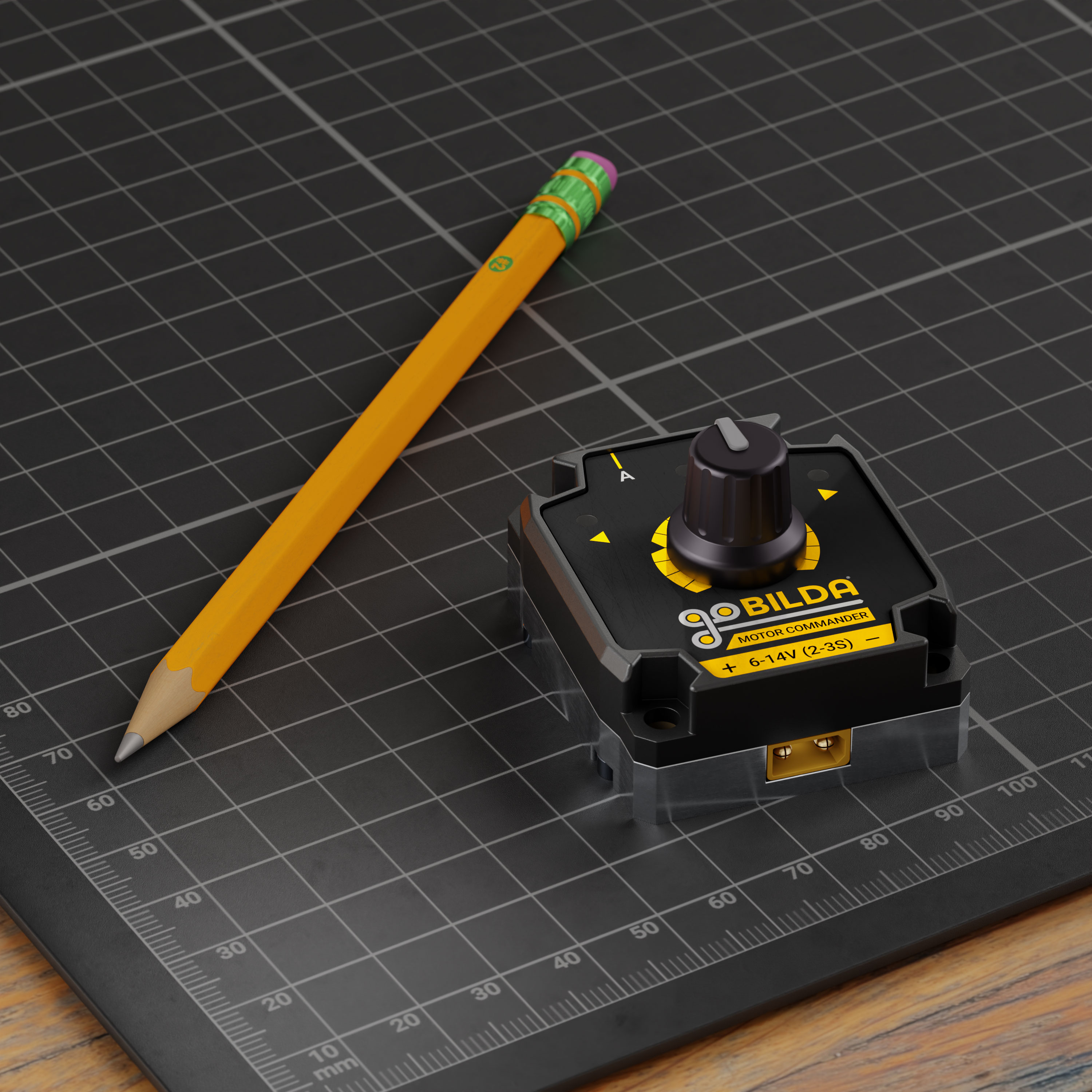

Sometimes you just want to dial in the speed! The 1x30A Motor Commander takes complexity out of the equation, leaving you with a simple knob that controls the speed and direction of your brushed DC motor. Precision dial control is a huge benefit to all kinds of projects—whether you’re doing a timelapse with a pan or slider assembly, or you’re welding or airbrushing a cylindrical item that needs to be rotated at just the right speed.

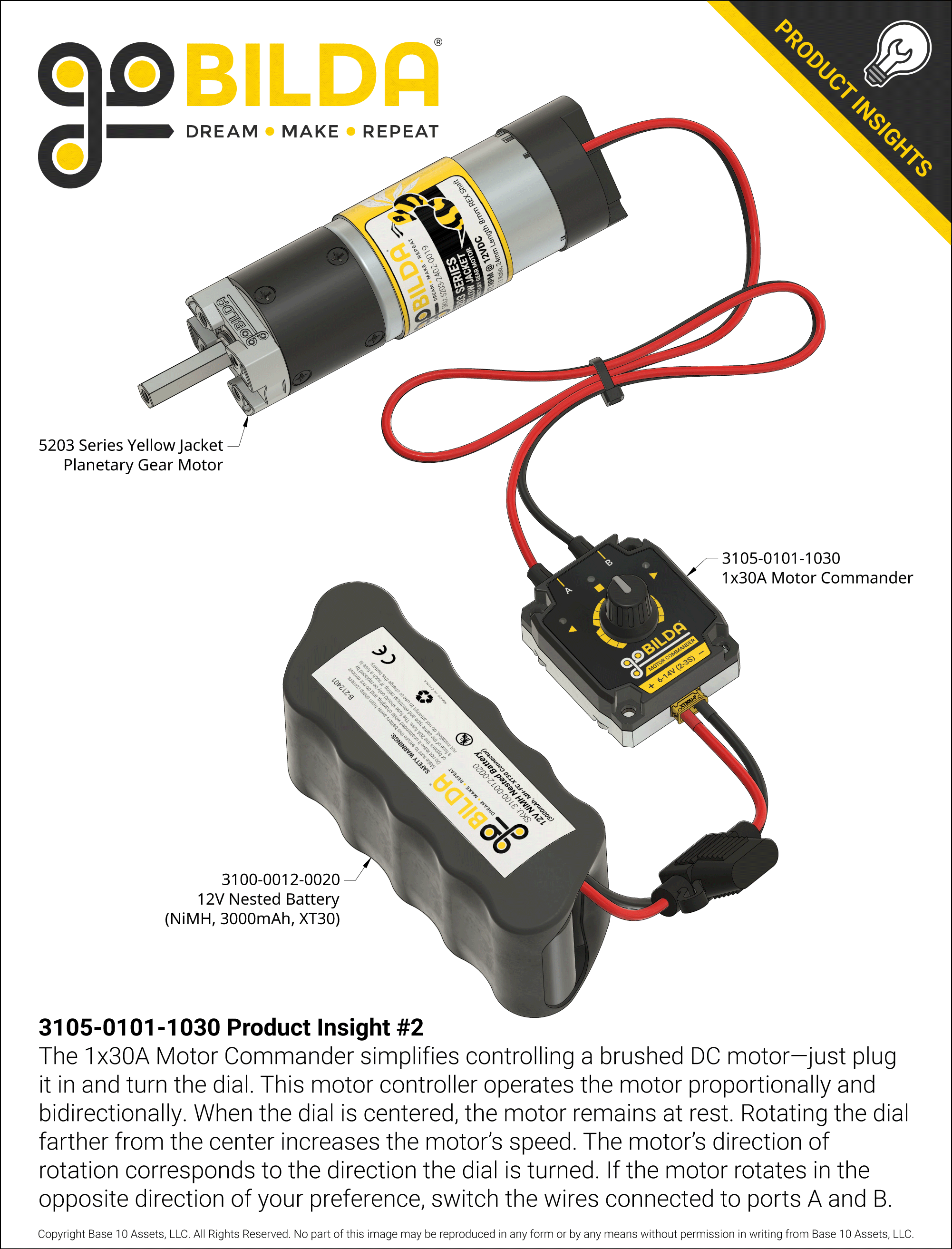

Bidirectional function means that you can achieve motor rotation in either direction (clockwise or counterclockwise) by turning the dial left or right, with a proportional increase in speed depending on how far you turn the dial. One of the three directional status LEDs will always remain on during operations to tell you how your motor’s moving.

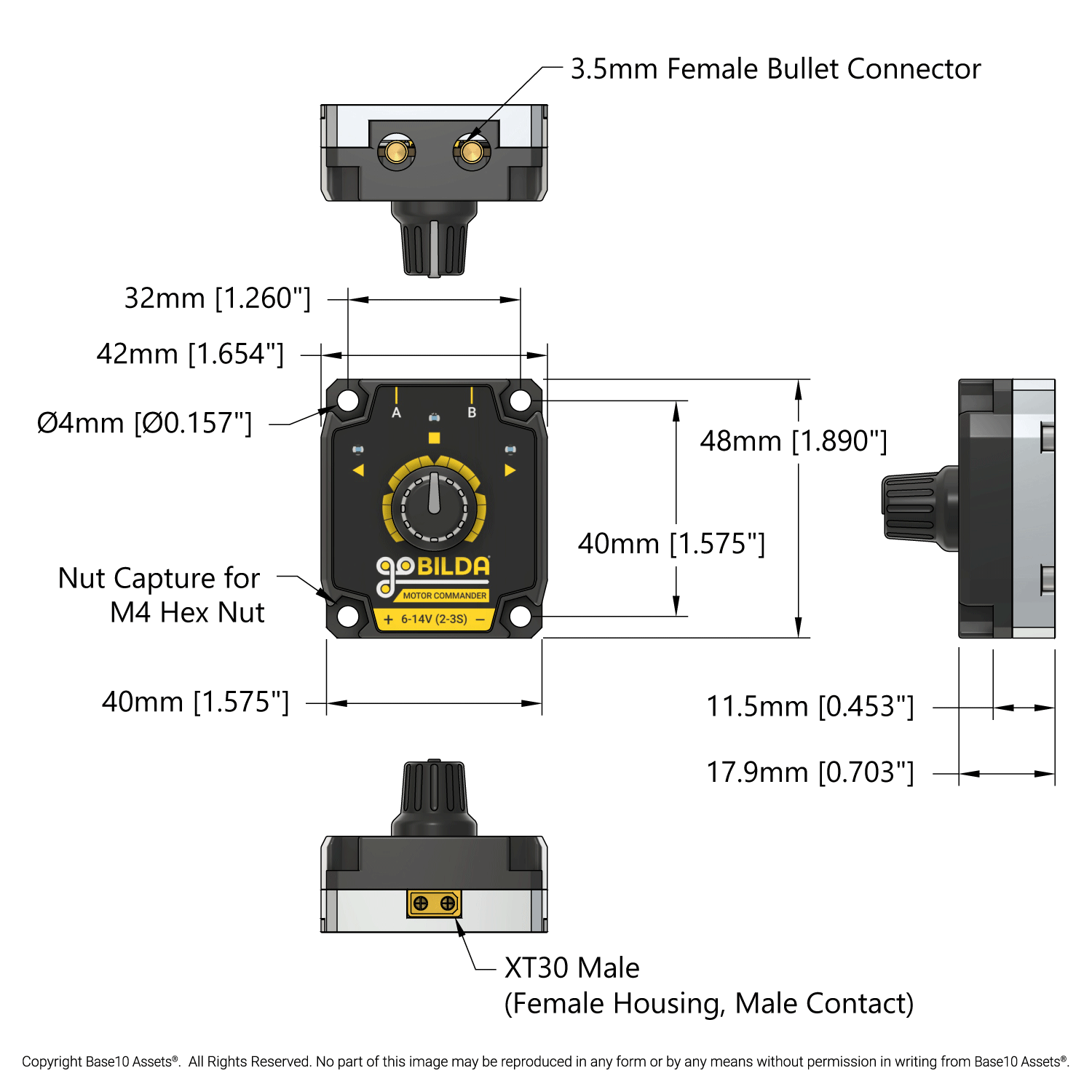

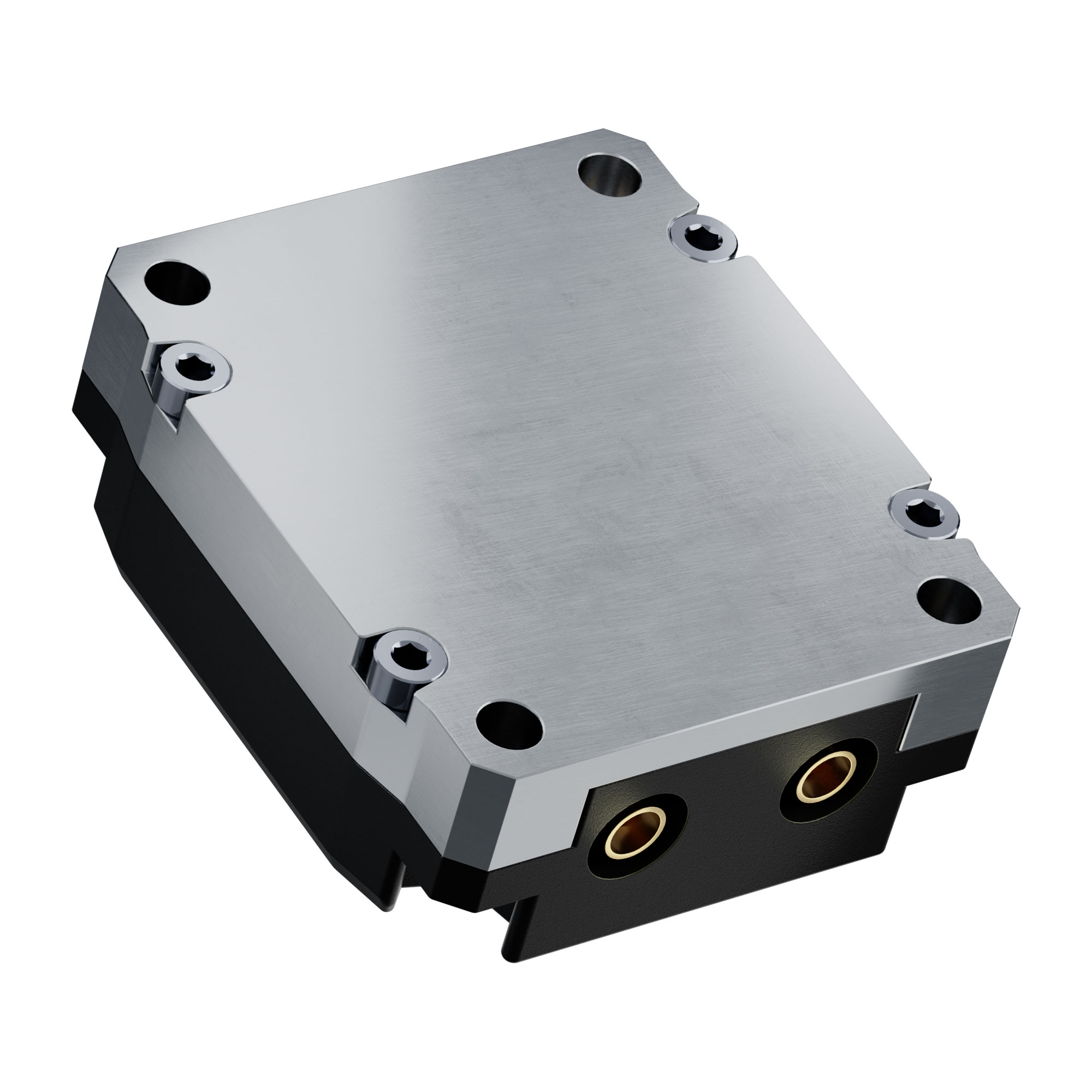

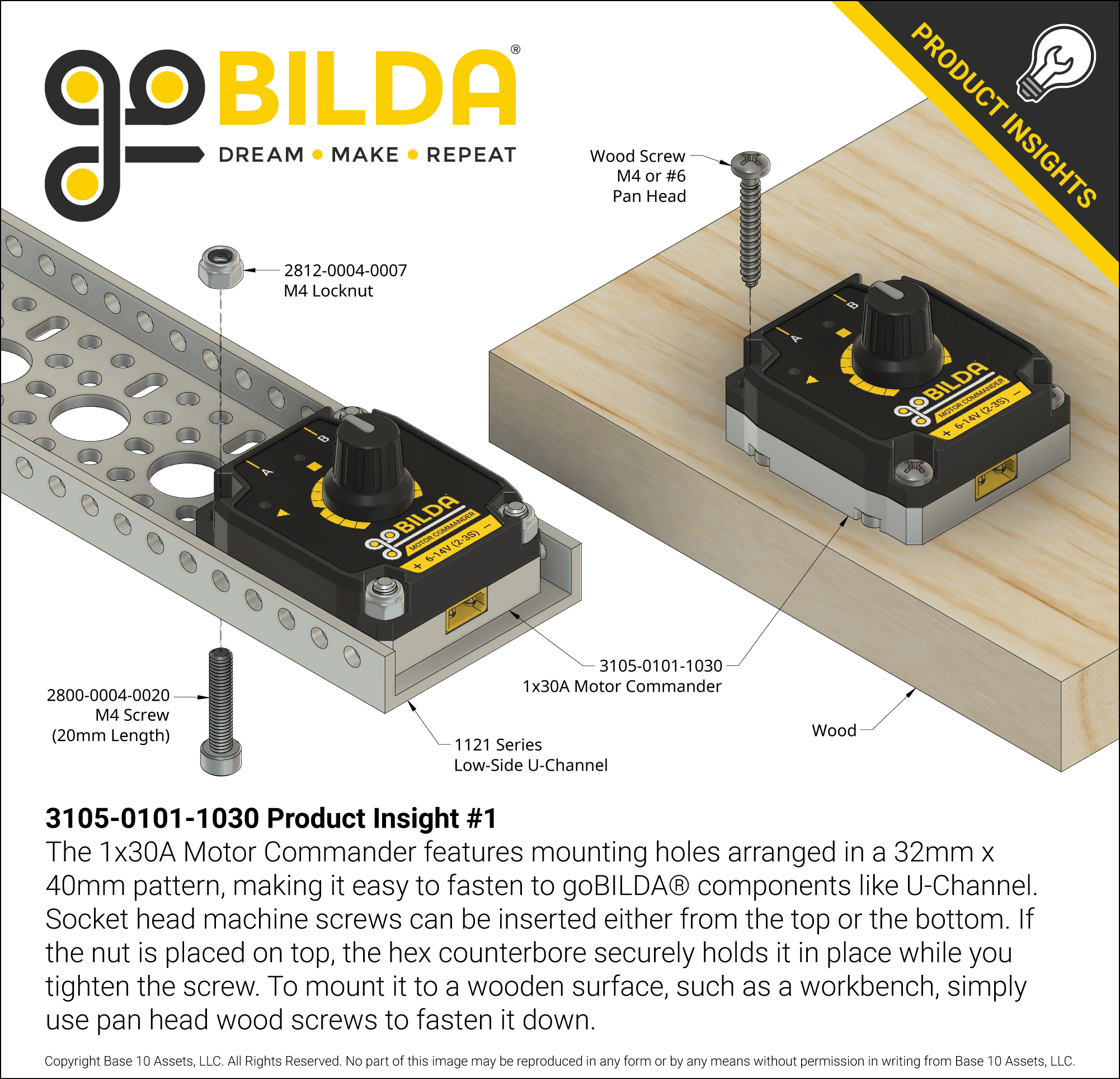

Motor control is facilitated safely thanks to temperature, current, and reverse-voltage protections. The aluminum heatsink can perform as a mounting base when you use the 32mm x 40mm pattern hex-counterbored thru-holes to easily fasten it to a surface using M4 hardware.

Output Enable Safety Feature

Safety-conscious engineering keeps things in control. If the dial is NOT at the center position when power is applied to the Motor Commander, the center LED will flash blue, and power will NOT be sent to the motor. To begin normal operations with the Motor Commander, move the dial to the center position. A tactilely satisfying detent makes it easy to find the center position. Once you hear the triple-chirp tone produced by your motor, you’re ready to put it into action!

Power Input

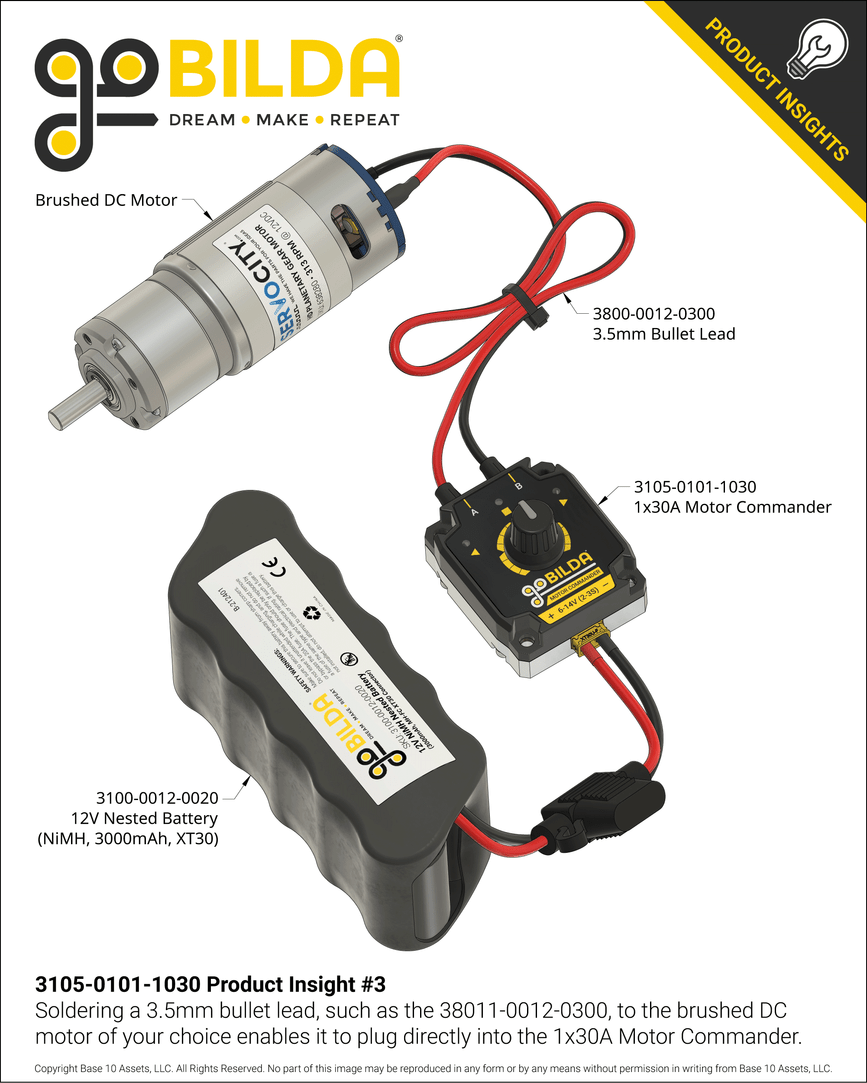

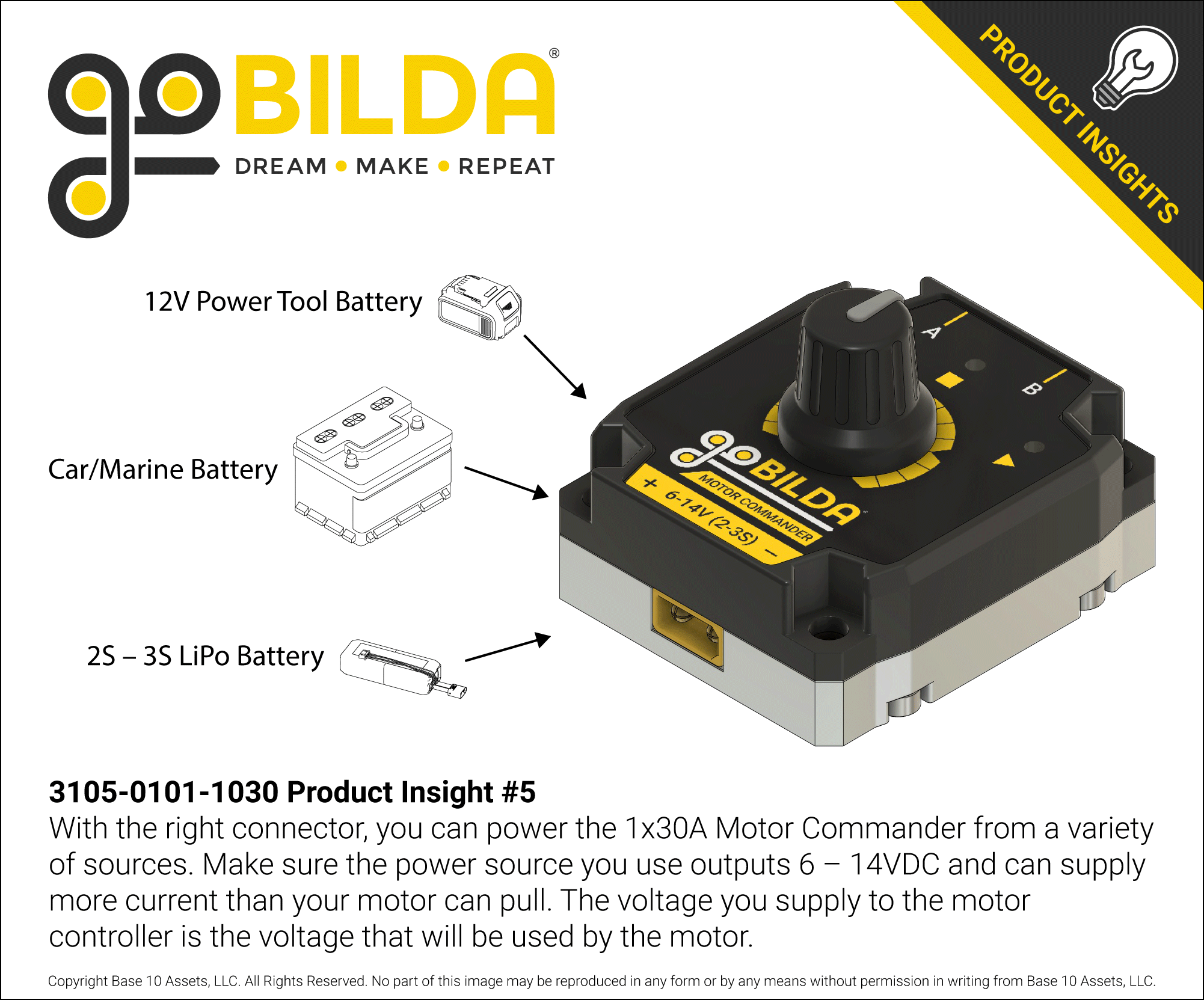

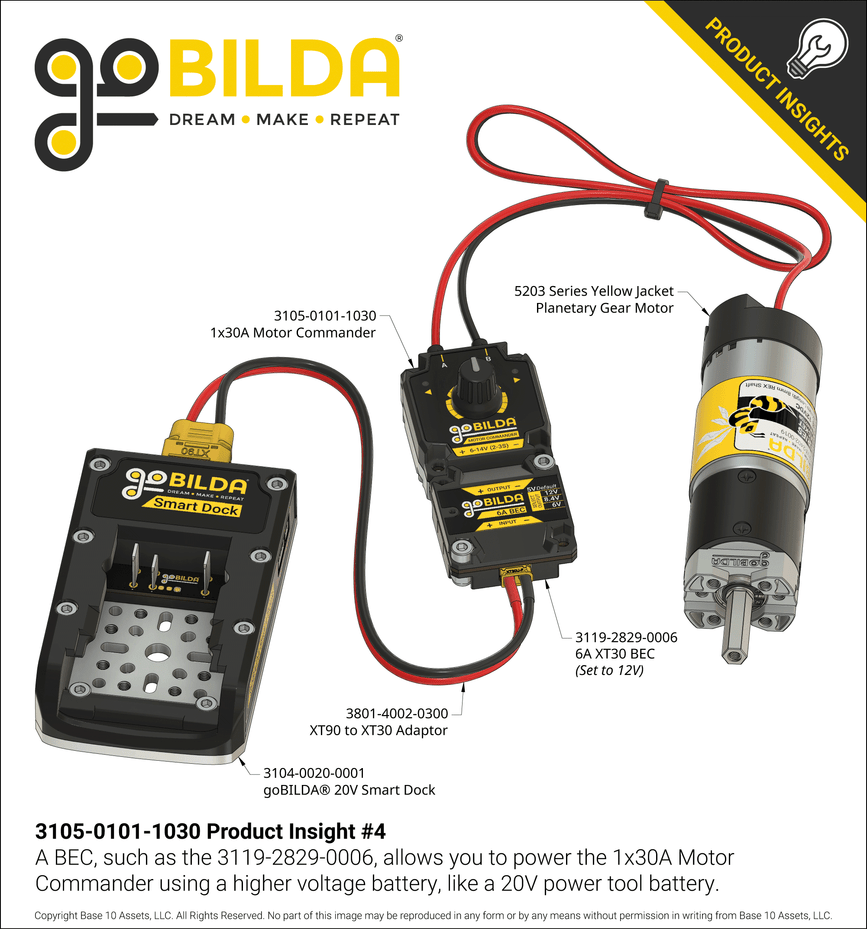

Supply anywhere from 6-14V to the XT30 connector to power your motors. The supplied voltage will be the voltage that your motor will receive through the Motor Commander’s pair of 3.5mm connectors (labeled “A” and “B”).

Output

The Motor Commander’s single channel can handle up to 30A of continuous current. You can use it to wire-up your motor or build a harness to supply power to multiple motors.
