2301 Series Brass, MOD 0.8, D-Bore, Set Screw Pinion Gear (6mm D-Bore, 30 Tooth)

SKU:

DISCONTINUED This product has been discontinued.

$7.99
Discontinued

Currently Sold Out

This gear has been discontinued. It has been replaced by the 2303-1006-0030

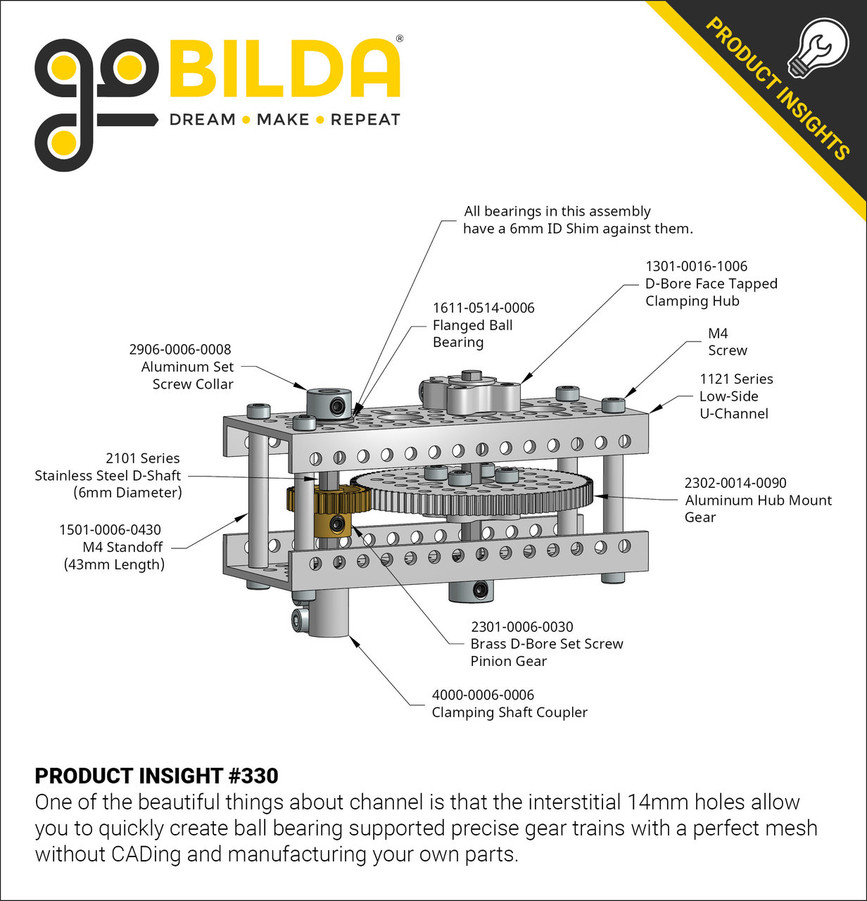

This 30 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear.  However when building on pattern, the most common partners for this gear are another 30 tooth gear, or a 90 tooth hub gear.   Utilizing a second 30 tooth gear will create a compact 1:1 ratio on a 24mm center distance.  A 1:1 ratio is useful when you have an assembly where you want two pieces to move at the same time, but in opposite directions.  Mating with a 90 tooth hub gear will create a 3:1 ratio on 48mm centers and can be used as an overdrive or underdrive.

Downloads

Specs

Weight 24g
Material Brass
Tooth Count 30
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
