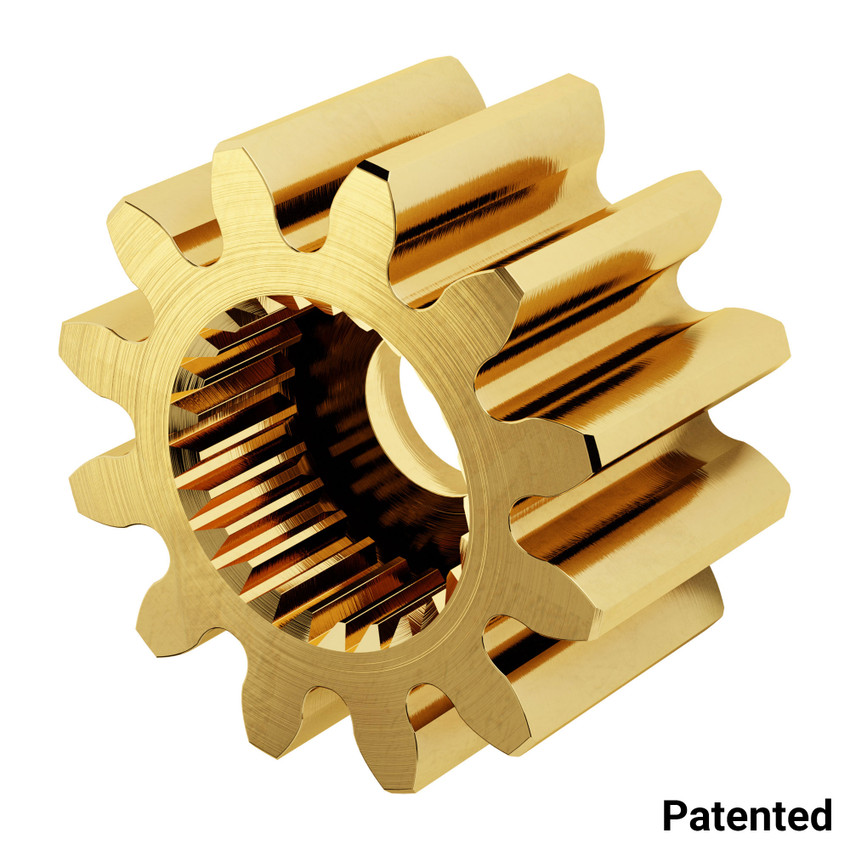

2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 12 Tooth)

SKU:
$9.99

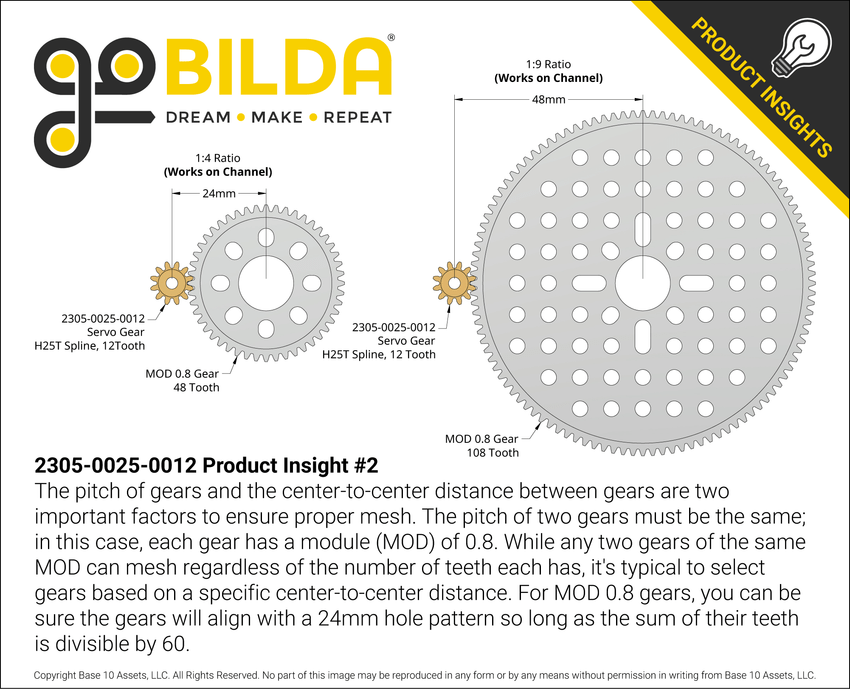

This 12 tooth servo gear is most commonly used to drive the 108 tooth hub gear, spaced 48mm away, in order to create a massive 9:1 ratio.  For a more compact setup, it will also mate with a 48 tooth hub gear, spaced 24mm away to create a 4:1 ratio.

Downloads

Specs

Weight 2.2g
Material Brass
Tooth Count 12
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
IP Patented
