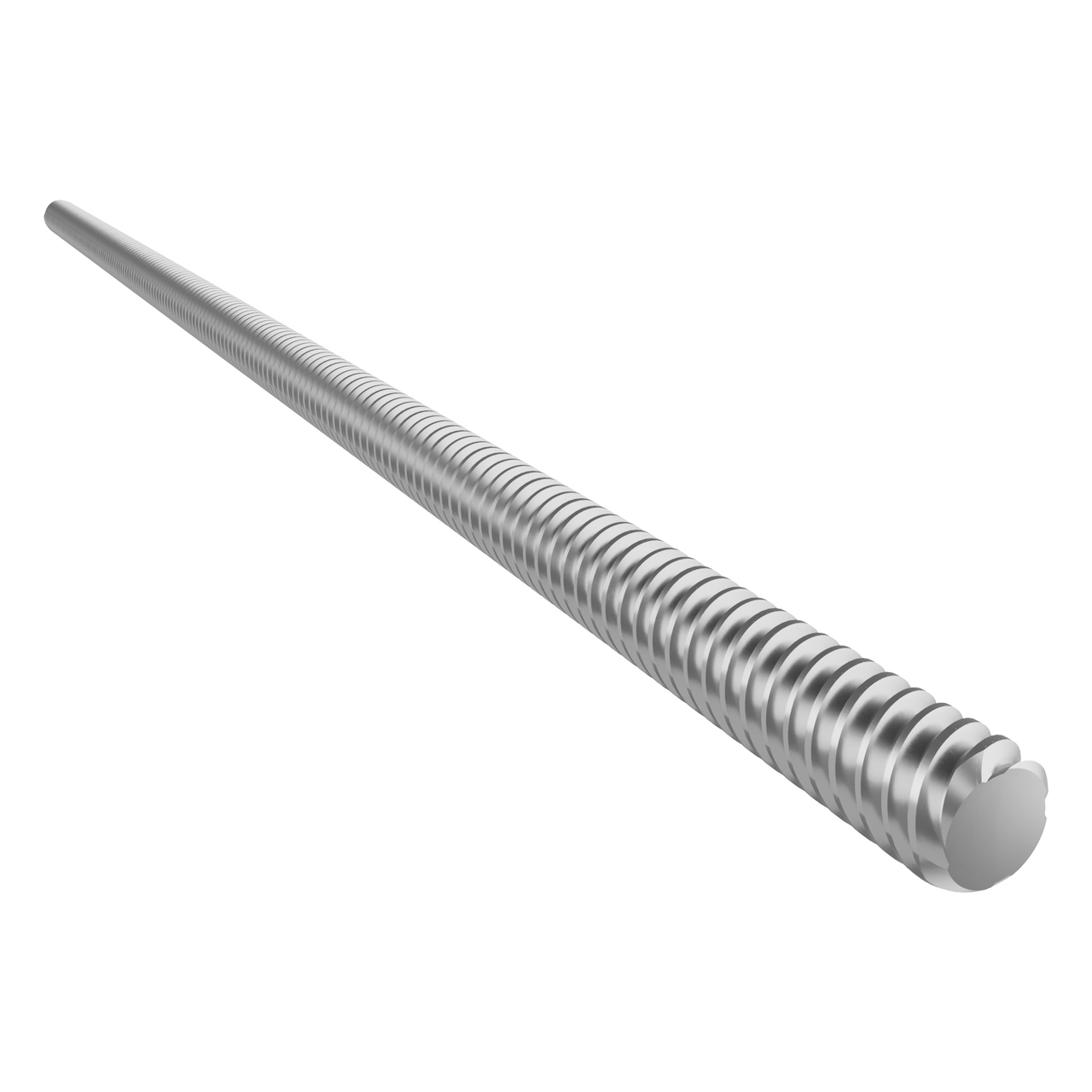

3501 Series Lead Screw (8mm Lead, 4 Start, 300mm Length)

SKU:
$9.99

Downloads

Specs

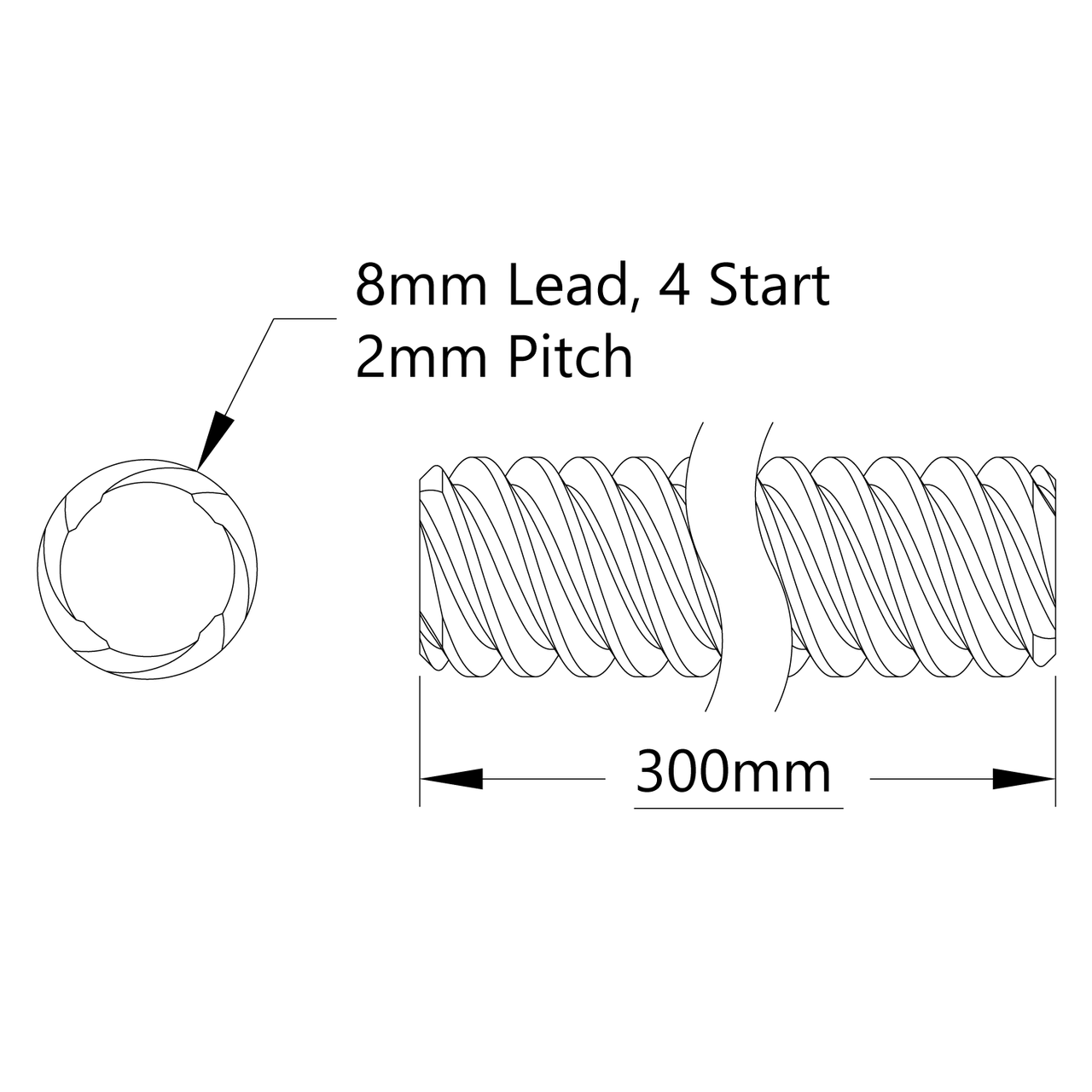

Length 300mm
Weight 91g
Material Stainless Steel

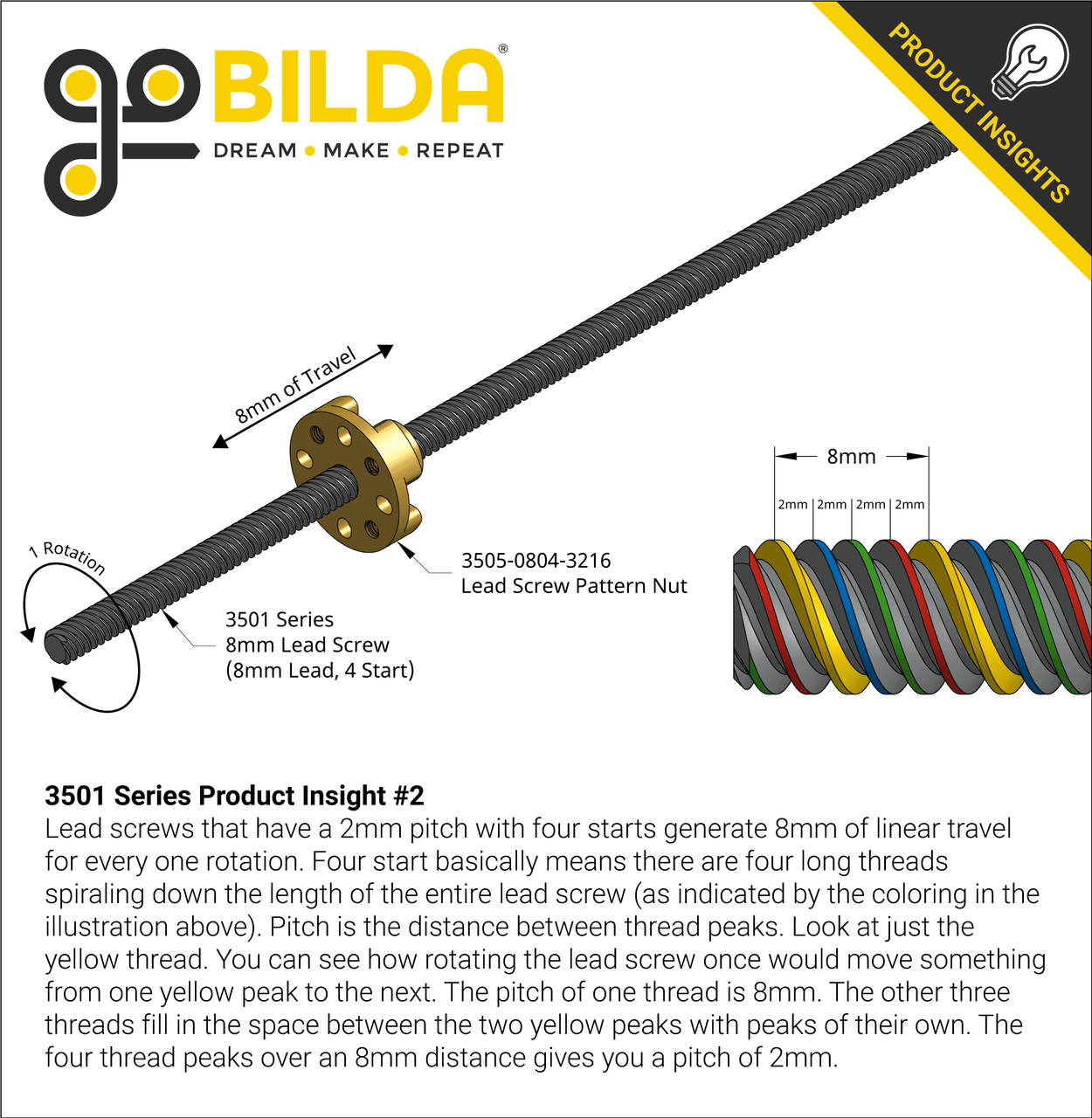

Pitch 2mm
# Starts 4
Lead Diameter 8mm

Related Products:

These products have been hand curated by our R&D team. We have selected products that are directly compatible with or very relevant to the 3501-0804-0300.

8mm ID x 11mm OD Stainless Steel Shims
8mm ID x 11mm OD Stainless Steel Shims
8mm ID x 10mm OD Spacers
8mm ID x 10mm OD Spacers
4006-0008-1006 - 4006 Series Hyper Coupler (8mm Round Bore to 6mm D-Bore)
4006-0008-1006
8mm Round Bore to 6mm D-Bore Hyper Coupler
$7.99
1310 Series Hyper Hub (4 Start, 8mm Lead Screw Bore)
1310-0016-5008
8mm Lead Screw Bore
$9.99
1500-0010-0008 - 1500 Series Plastic Spacer (8mm ID x 10mm OD, 1mm Thickness)
1500-0010-0008
1500 Series Plastic Spacer (8mm ID x 10mm OD, 1mm Thickness) - 12 Pack
$2.89 / 12 Pack
1600-0722-0008 - 1600 Series Non-Flanged Ball Bearing (8mm ID x 22mm OD, 7mm Thickness) - 2 Pack
1600-0722-0008
1600 Series Non-Flanged Ball Bearing (8mm ID x 22mm OD, 7mm Thickness) - 2 Pack
$3.49 / 2 Pack
1611-0514-0008 - 1611 Series Flanged Ball Bearing (8mm ID x 14mm OD, 5mm Thickness) - 2 Pack
1611-0514-0008
8mm ID x 14mm OD Mini Flanged Ball Bearing
$3.99 / 2 Pack
1602-0032-0008 - 1602 Series 1-Side, 2-Post Pillow Block (8mm Bore)
1602-0032-0008
8mm ID 1602 Series Pillow Block
$7.99
1603-0032-0008 - 1603 Series Face Thru-Hole Pillow Block (8mm Bore)
1603-0032-0008
8mm ID 1603 Series Pillow Block
$6.99
1605-0024-0008 - 1605 Series 1-Side, 1-Post Pillow Block (8mm Bore)
1605-0024-0008
8mm ID 1605 Series Pillow Block
$5.99
8mm Bore 2-Side, 1-Post Pillow Block (43mm Width)
1606-0043-0008
8mm ID 1606 Series Pillow Block
$6.99
1613-0516-0008 - 1613 Series Thrust Ball Bearing (8mm ID x 16mm OD, 5mm Thickness)
1613-0516-0008
8mm ID Thrust Ball Bearing (15.5mm OD, 5mm Thickness)
$3.99
3205-0003-0001 V-Guide Lead Screw Dolly Kit
3205-0003-0001
V-Guide Lead Screw Dolly Kit
OUT OF STOCK
$34.99
3500-0804-1216 - 3500 Series Lead Screw Barrel Nut (8mm Lead, 4 Start, 12mm OD, 16mm Length)
3500-0804-1216
Barrel
Lead Screw Nut
$4.99
3503 Series Lead Screw Nut for Open goRAIL (8mm Lead, 4 Start, 38mm Length)
3503-0804-0038
Lead Screw Nut
for Open goRAIL
$12.99
3505 Series Lead Screw Pattern Nut (8mm Lead, 4 Start, 32mm OD, 16mm Length)
3505-0804-3216
Pattern
Lead Screw Nut
$8.99
3506-0804-0016 - 3506 Series Lead Screw Square Nut (8mm Lead, 4 Start, 16mm Length)
3506-0804-0016
Square
Lead Screw Nut
$7.99
3508-0804-1432 - 3508 Series Lead Screw Nut for V-Guide (8mm Lead, 4 Start, 14mm Width, 32mm Height)
3508-0804-1432
V-Guide
Lead Screw Nut
$9.99
4000-0005-0008 - 4000 Series Clamping Shaft Coupler (5mm Round Bore to 8mm Round Bore)
4000-0005-0008
5mm Bore - 8mm Bore Clamping Coupler
$3.99
4000-0006-0008 - 4000 Series Clamping Shaft Coupler (6mm Round Bore to 8mm Round Bore)
4000-0006-0008
6mm Bore - 8mm Bore Clamping Coupler
$3.99
4000-0008-0250 - 4000 Series Clamping Shaft Coupler (8mm Round Bore to 0.250" Round Bore)
4000-0008-0250
8mm Bore - 0.250" Bore Clamping Coupler
$3.99
4002-0005-0008 - 4002 Series Flexible Clamping Shaft Coupler (5mm Round Bore to 8mm Round Bore)
4002-0005-0008
5mm Bore - 8mm Bore Flexible Coupler
$5.99
4002-0006-0008 - 4002 Series Flexible Clamping Shaft Coupler (6mm Round Bore to 8mm Round Bore)
4002-0006-0008
6mm Bore - 8mm Bore Flexible Coupler
$5.99
4002-0008-0250 - 4002 Series Flexible Clamping Shaft Coupler (8mm Round Bore to 0.250" Round Bore)
4002-0008-0250
8mm Bore - 0.250" Bore Flexible Coupler
$5.99
