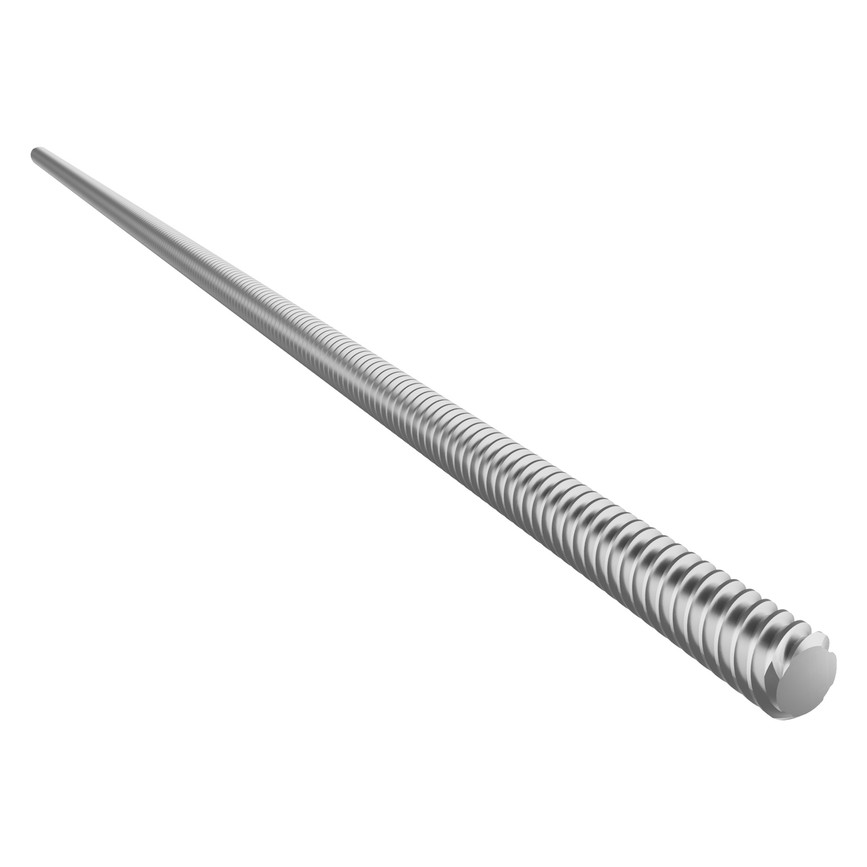

3501 Series Lead Screw (8mm Lead, 4 Start, 450mm Length)

SKU:
$12.99

Downloads

Specs

Length 450mm
Weight 137g
Material Stainless Steel
Pitch 2mm
# Starts 4
Lead Diameter 8mm
