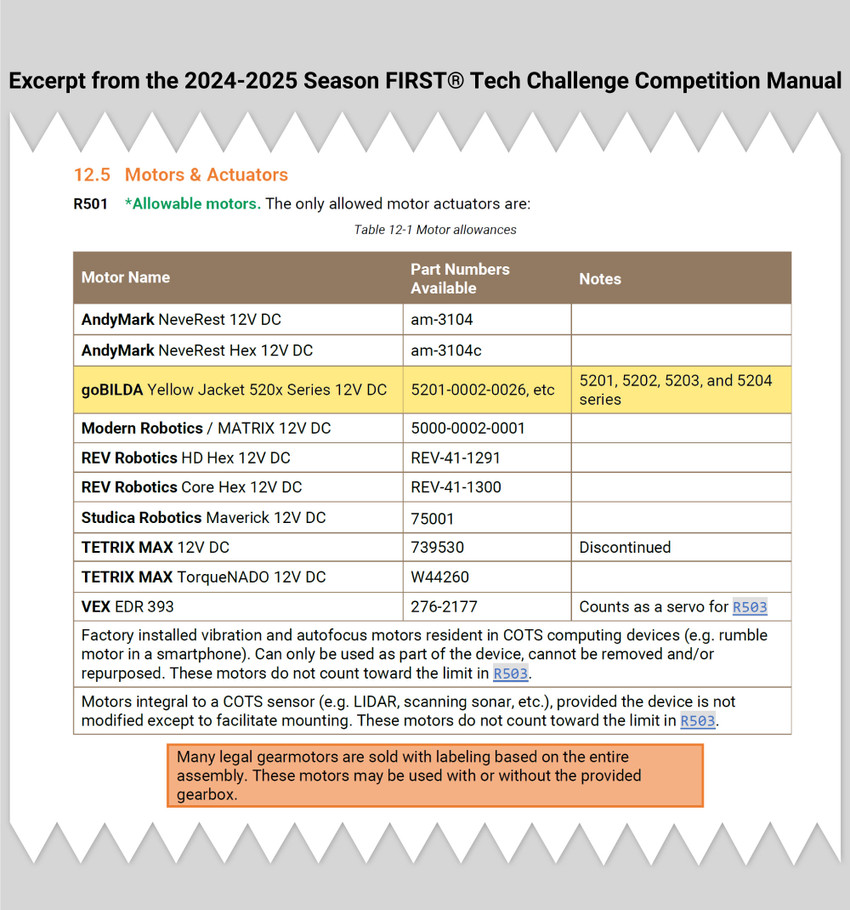

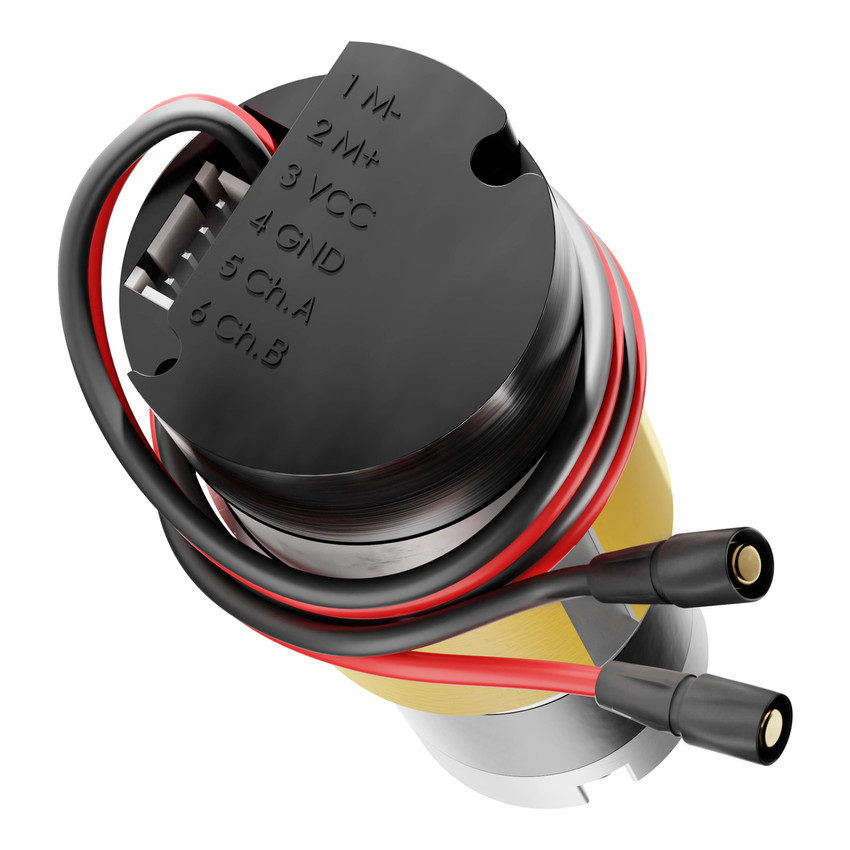

5202 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 312 RPM, 3.3 - 5V Encoder)
SKU:
DISCONTINUED This product has been discontinued.
$39.99
Downloads
Specs

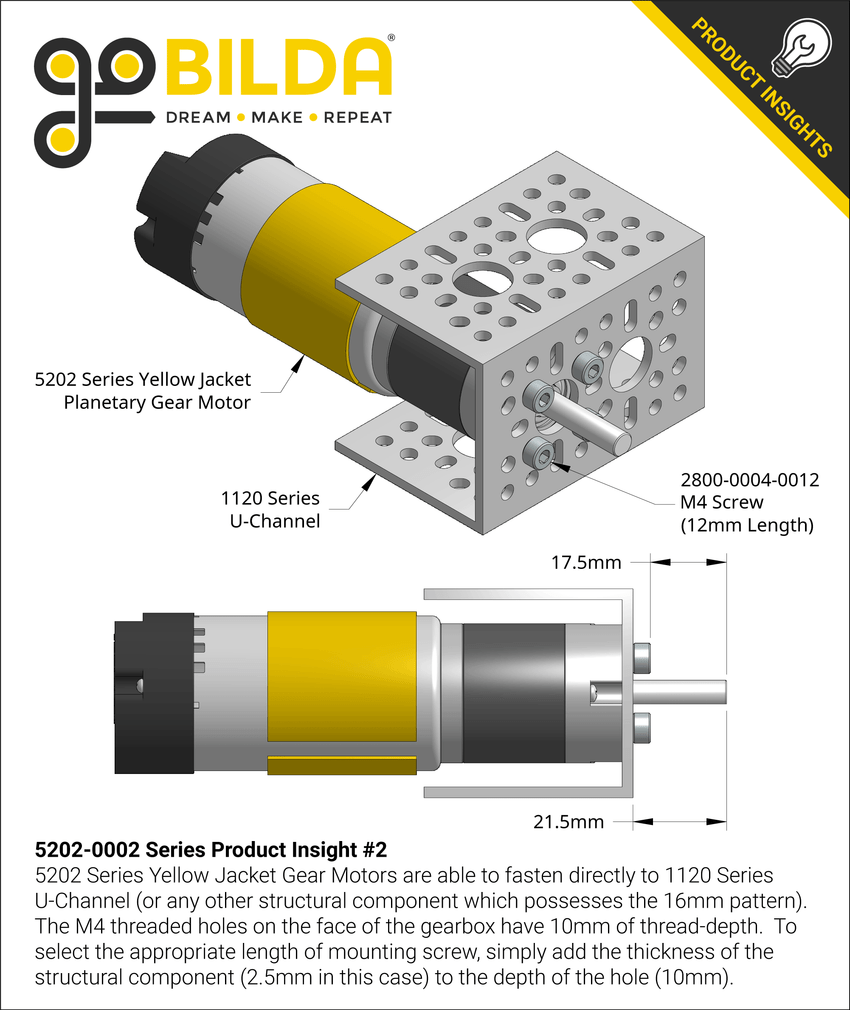

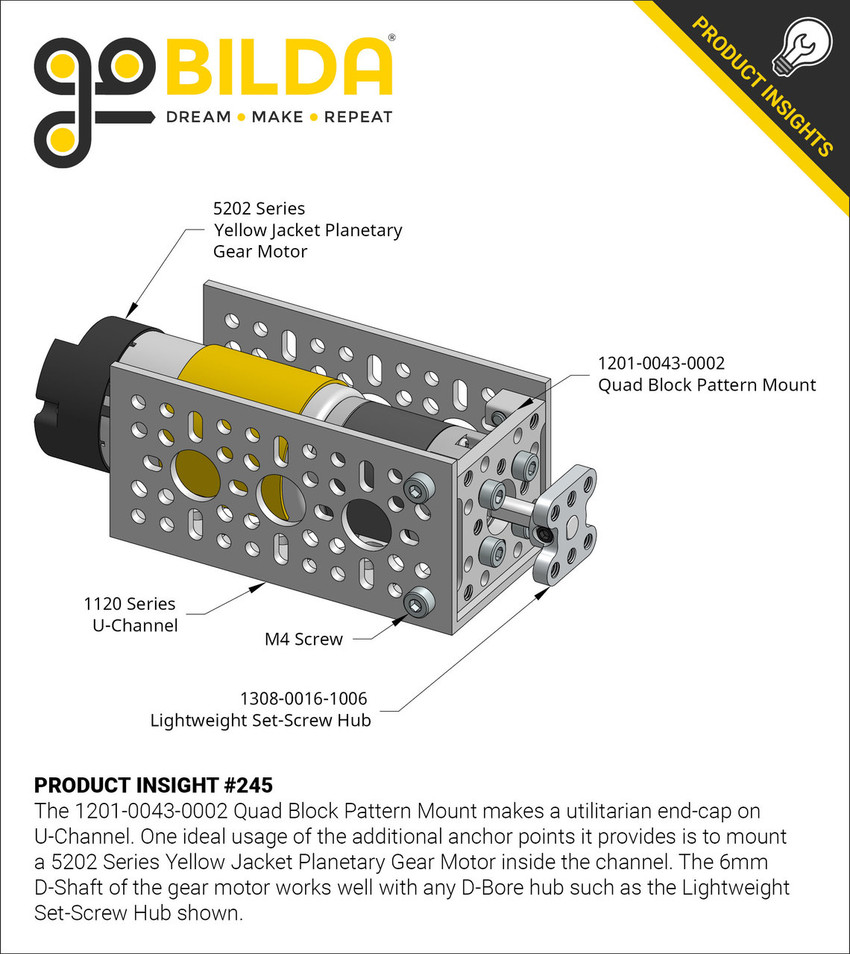

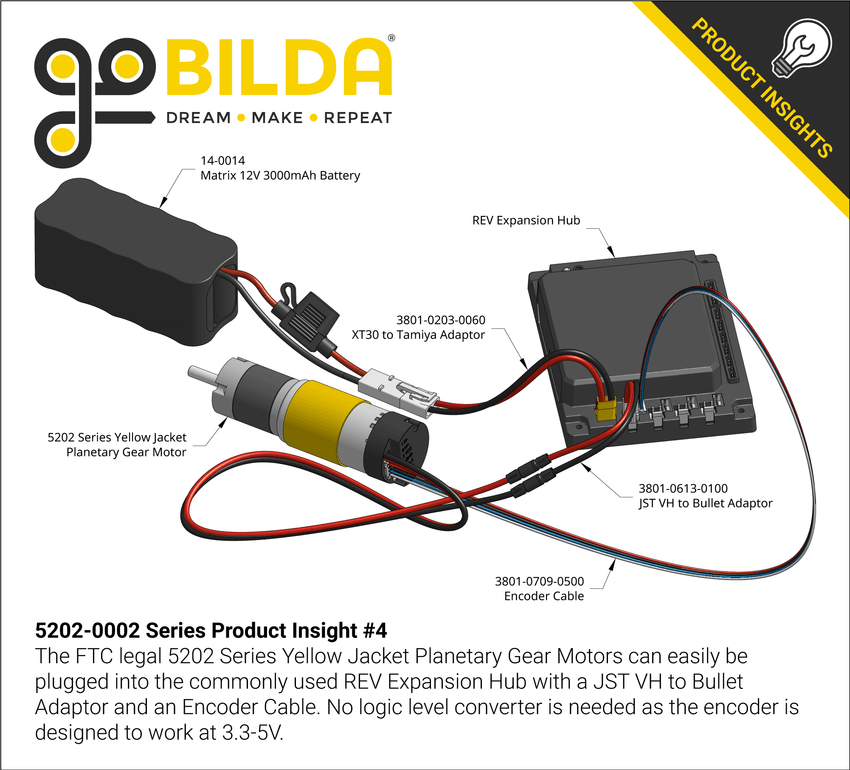

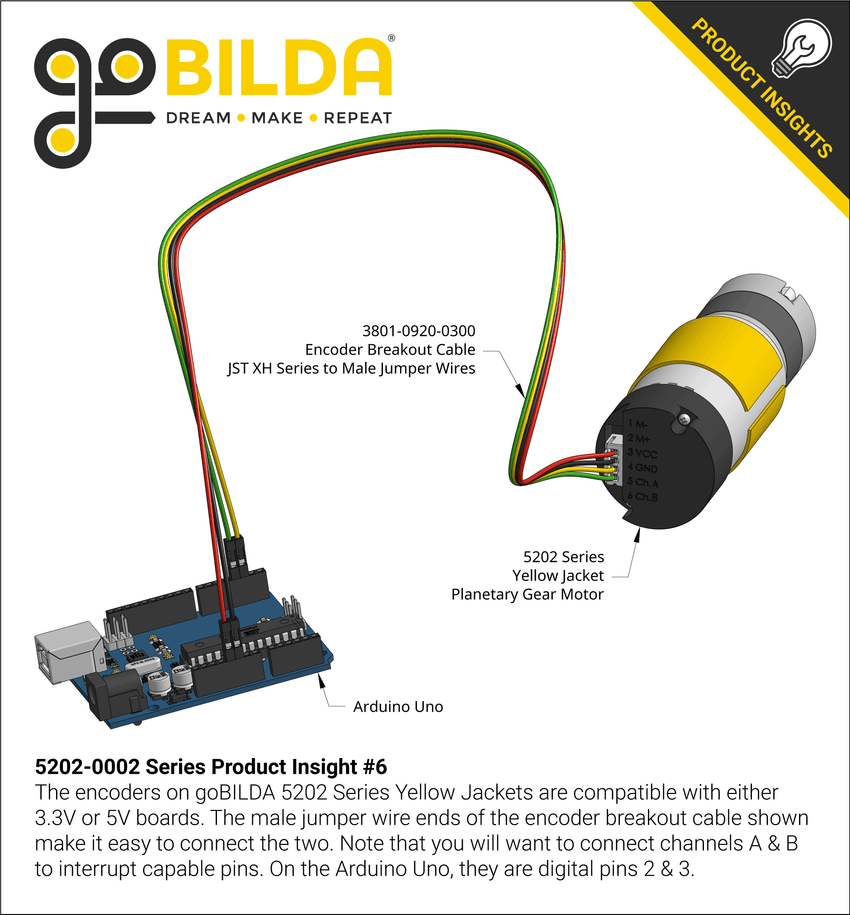

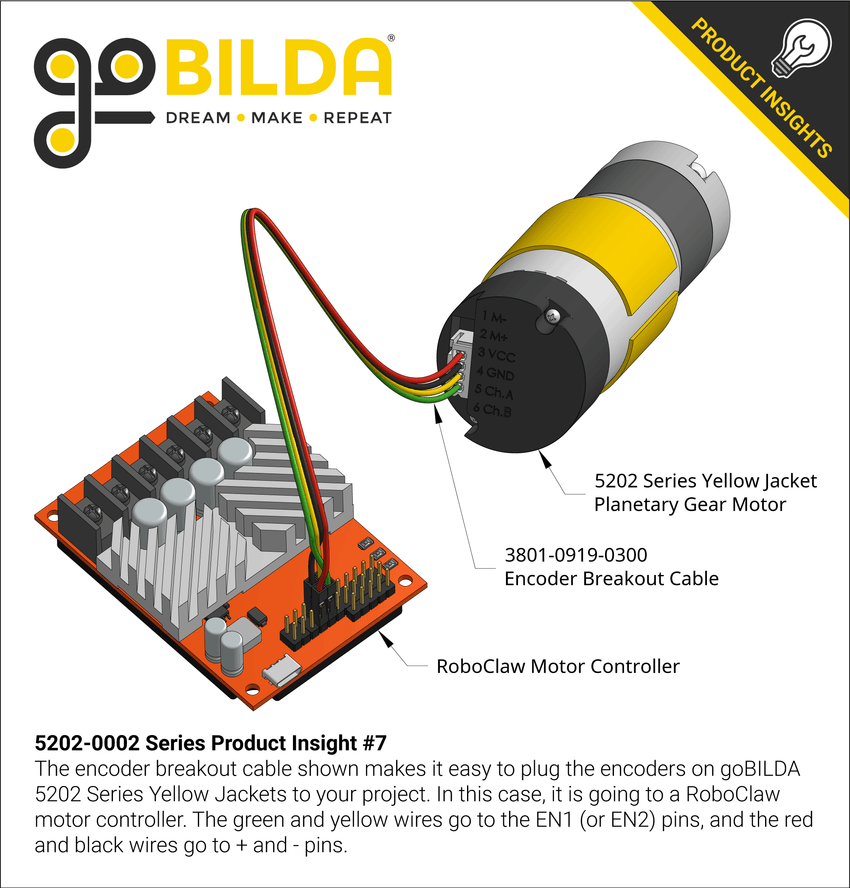

| Motor Size | RS-555 |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12VDC |
| Output Shaft | 6mm D |
| Gearbox Style | Planetary |
| Gear Ratio | 19.2:1 |
| Gear Ratio Formula | (((1+(46/17))) * (1+(46/11))):1 |
| Gear Material | Casing: Steel Ring Gear Stage 1: Steel Gear, Acetal Orbital Gears Stage 2: Steel Sun Gear, Steel Orbital Gears |
| No-Load Speed @ 12VDC | 312 RPM |
| No-Load Current @12VDC | 0.25A |
| Stall Current @12VDC | 9.2A |
| Stall Torque @12VDC | 24.3 kg.cm (338 oz-in) |
| Wire Length | 470mm (including connectors) |
| Wire Gauge | 18AWG |
| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |
| Encoder Connector Type | 4-Pos JST XH [FH-MC] |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3 - 5VDC |
| Encoder Resolution | 537.7 PPR at the Output Shaft |
| Encoder Resolution Formula | ((((1+(46/17))) * (1+(46/11))) * 28) |
| Weight | 420g |
Related Products:
These products have been hand curated by our R&D team. We have selected products that are directly compatible with or very relevant to the 5202-0002-0019.
![3801-0613-0100 - 2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)](https://cdn11.bigcommerce.com/s-x56mtydx1w/images/stencil/318x318/products/823/4564/3801-0613-0100__22657__34074.1701992234.jpg?c=1 "3801-0613-0100 - 2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)")
![3801-0709-0300 - 4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC] Adaptor (300mm Length)](https://cdn11.bigcommerce.com/s-x56mtydx1w/images/stencil/318x318/products/825/4571/3801-0709-0300__07240__59254.1701992236.jpg?c=1 "3801-0709-0300 - 4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC] Adaptor (300mm Length)")
![Encoder Breakout Cable (4-Pos JST XH [MH-FC] to 4 x 1-Pos TJC8 [MH-FC], 300mm Length)](https://cdn11.bigcommerce.com/s-x56mtydx1w/images/stencil/318x318/products/1211/6048/3801-0919-0300__22115__11537.1701992731.jpg?c=1 "Encoder Breakout Cable (4-Pos JST XH [MH-FC] to 4 x 1-Pos TJC8 [MH-FC], 300mm Length)")

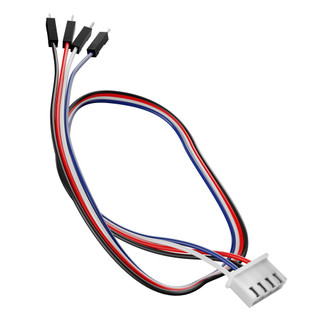

![3801-0920-0300 -Encoder Breakout Cable (4-Pos JST XH [MH-FC] to 4 x 1-Pos TJC8 [FH-MC], 300mm Length)](https://cdn11.bigcommerce.com/s-x56mtydx1w/images/stencil/318x318/products/1239/6175/wire__53581__09292.1701992772.jpg?c=1 "3801-0920-0300 -Encoder Breakout Cable (4-Pos JST XH [MH-FC] to 4 x 1-Pos TJC8 [FH-MC], 300mm Length)")
