Ball Bearing Carriage for 1121 Series Low-Side U-Channel
SKU:
$24.99

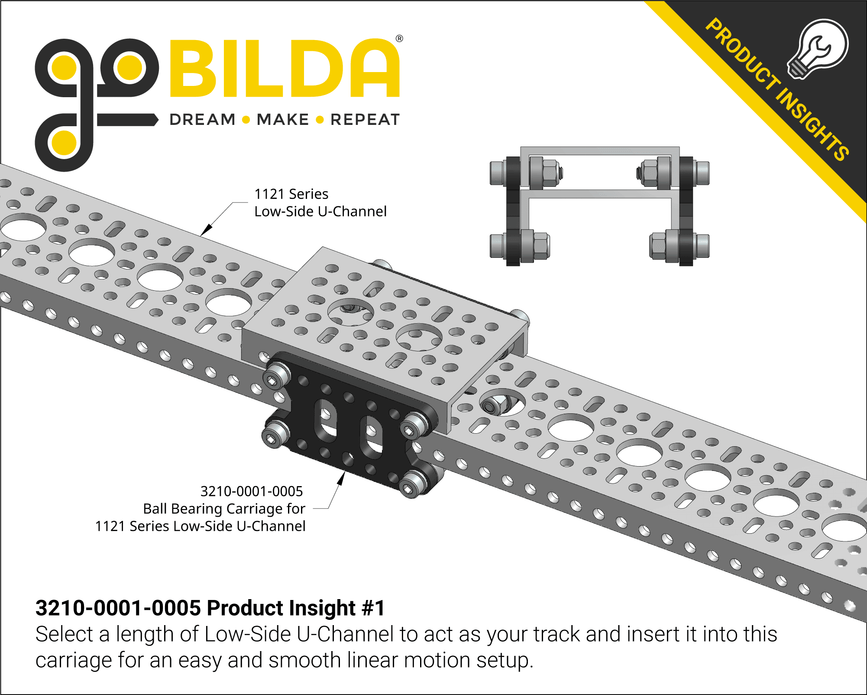

This Ball Bearing Carriage is purpose-built to ride on 1121 Series Low-Side U-Channel. The carriage is suspended by eight ball bearings to provide excellent stability with a super low coefficient of friction. The plates have numerous unused holes which can be used to connect your drive-style of choice. Use a single carriage or run them on each side of your project with a crossbar to create a large gantry system!
Kit Contents:
| SKU | Qty | Name |
|---|---|---|
| 1121-0002-0072 | 1 | 1121 Series Low-Side U-Channel (2 Hole, 72mm Length) |
| 1600-0410-0004 | 4 | 1600 Series Non-Flanged Ball Bearing (4mm ID x 10mm OD, 4mm Thickness) - 2 Pack |
| 2800-0004-0014 | 1 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length) - 25 Pack |
| 2800-0004-0018 | 1 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) - 25 Pack |
| 2801-0004-0008 | 1 | 2801 Series Zinc Plated Steel Washer (4mm ID x 8mm OD) - 25 Pack |
| 2807-0407-0250 | 1 | 2807 Series Stainless Steel Shim (4mm ID x 7mm OD, 0.25mm Thickness) - 12 Pack |
| 2812-0004-0007 | 1 | 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) - 25 Pack |
| 3705-0001-0001 | 1 | Carriage Bracket for 3210-0001-0005 (1-1) - 2 Pack |
Downloads
Specs
| Weight | 76g |
|---|
