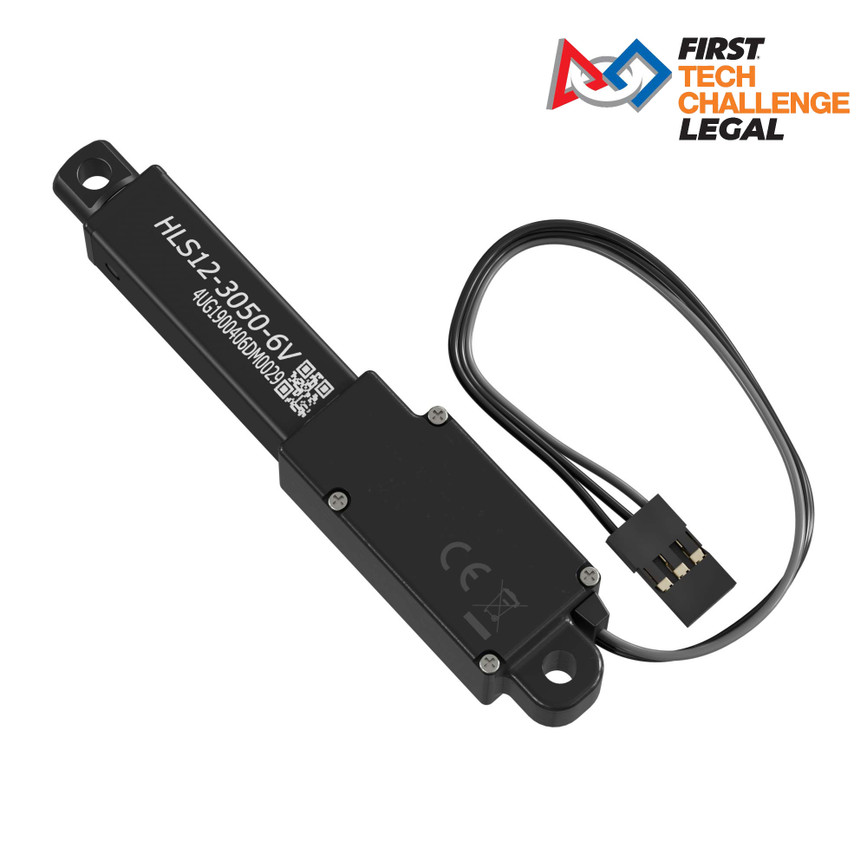

Hitec Linear Servo (30mm Stroke, 30.9mm/sec, 3.1kg Thrust)
SKU:
$99.99
Downloads
Specs
| Weight | 33g |
|---|---|
| Stroke | 30mm | 1.2" |
| Speed (No Load) @ 6.0VDC | 25.0mm/sec | 1.0"/sec |
| Speed (No Load) @ 7.4VDC | 30.9mm/sec | 1.2"/sec |
| Thrust (Stall) @ 6.0VDC | 2.5kg | 5.5lb |
| Thrust (Stall) @ 7.4VDC | 3.1kg | 6.8lb |
| Gear Ratio | 50:1 |
| Voltage Range | 4.8 - 7.4VDC |
| Max PWM Range | 900-2100μsec |
| Operating Temperature | -10°c ~ +50°c |
| Motor Type | Brushed DC |
| Feedback Style | Digital |
| Wire Length | 160mm |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Current Drain (Stall) @ 6.0VDC | 500 mA |
| Current Drain (Stall) @ 7.4VDC | 620 mA |
| Manufacturer Part Number | 41008 |
