Master FTC Kit (2019-2020 Season)
SKU:
DISCONTINUED This product has been discontinued.
$659.99
This product has been discontinued. It has been replaced by the Master FTC Kit (6mm D-Shaft, 2020-2021 Season) [3200-1006-2021].
The FTC kit is comprised of 2,063 individual pieces with a retail value of over $1300! But FTC Team budgets are real and we at goBILDA remember all too well when ideas came quicker than the funds to carry them out. For that reason, we've discounted the kit to $494.99 for FTC teams so click here and apply for your discount today!
Why buy this FTC Master Kit?
- Ball Bearing Based
Because goBILDA is ball bearing based, your robot will have less friction and more efficiency. - More Parts, Less Money
No need to sacrifice quality for quantity. Our steep team discounts get you in the game. - Better Gear Motors
Our Yellow Jacket Planetary Gear Motors produce tremendous torque. - Build it Your Way
Mix and match pattern based Channel with slide-and-lock goRAIL to get the best of both worlds.
This Kit Includes:
Motors:
| Qty: 2 | 5202 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 312 RPM, 3.3 - 5V Encoder) | SKU: 5202-0002-0019 x 2 |
| Qty: 2 | 5202 Series Yellow Jacket Planetary Gear Motor (26.9:1 Ratio, 223 RPM, 3.3 - 5V Encoder) | SKU: 5202-0002-0027 x 2 |
Motor Wiring:
| Qty: 4 | 2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length) | SKU: 3801-0613-0100 x 4 |
| Qty: 4 | 4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC] Adaptor (300mm Length) | SKU: 3801-0709-0300 x 4 |
Servos:
| Qty: 4 | 2000 Series Dual Mode Servo (25-2) | SKU: 2000-0025-0002 x 4 |
| Qty: 1 | Servo Programmer for 2000 Series Dual Mode Servo | SKU: 3102-0001-0001 x 1 |
Servo Mounts:
| Qty: 3 | 1801 Series Servo Plate (For Standard Size Servos) | SKU: 1801-0040-0001 x 3 |
| Qty: 1 | 1802 Series Servo Frame (43mm Width, for Standard Size Servos) | SKU: 1802-0043-0001 x 1 |
Servo Wiring:
| Qty: 2 | 3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 300mm Length) | SKU: 3802-1718-0300 x 2 |
| Qty: 2 | 3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 600mm Length) | SKU: 3802-1718-0600 x 2 |
| Qty: 1 | 3-Pos TJC8 Servo Y-Harness (Single MH-FC to Dual FH-MC, 300mm Length) | SKU: 3805-1718-0300 x 1 |

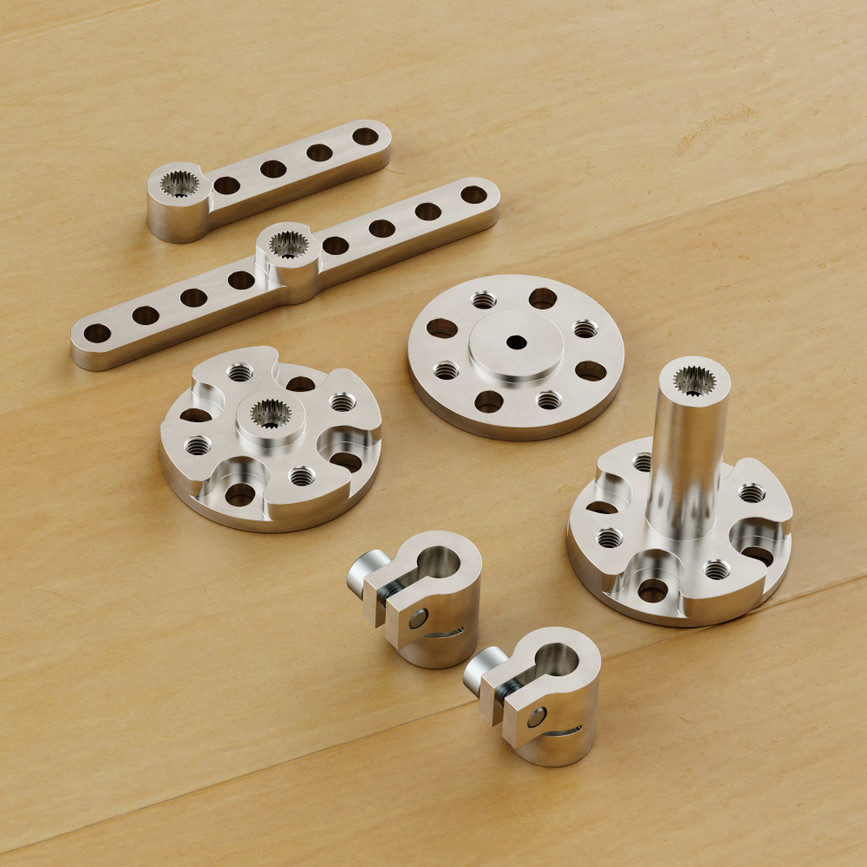

Servo Attachments:
| Qty: 1 | 1900 Series Single Servo Arm (25 Tooth Spline, 32mm Length) | SKU: 1900-0025-0104 x 1 |
| Qty: 1 | 1902 Series Dual Servo Arm (25 Tooth Spline, 64mm Length) | SKU: 1902-0025-0204 x 1 |
| Qty: 1 | 1906 Series Lightweight Servo Hub (25 Tooth Spline, 32mm Diameter) | SKU: 1906-0025-0032 x 1 |
| Qty: 1 | 1908 Series Servo Hub (25 Tooth Spline, 32mm Diameter) | SKU: 1908-0025-0032 x 1 |
| Qty: 1 | 1910 Series Servo Hub Shaft (25 Tooth Spline, 10mm Shaft Diameter, 33mm Length) | SKU: 1910-0025-1033 x 1 |
| Qty: 2 | 4001 Series Clamping Servo to Shaft Coupler (25 Tooth Spline to 6mm Round Bore) | SKU: 4001-0025-0006 x 2 |
Battery and Accessories:
| Qty: 1 | Matrix 12V 3000mAh NiMH Battery | SKU: 14-0014 x 1 |
| Qty: 1 | Battery Charger (NiCad/NiMH, 12-1 | SKU: 3101-0012-0001 x 1 |
| Qty: 1 | XT30 [MH-FC] to Tamiya [MH-FC] Adaptor (60mm Length) | SKU: 3801-0203-0060 x 1 |
| Qty: 1 | Battery Mount (32-1) | SKU: 1209-0032-0001 x 1 |
Channel:
| Qty: 2 | 1120 Series U-Channel (1 Hole, 48mm Length) | SKU: 1120-0001-0048 x 2 |
| Qty: 4 | 1121 Series Low-Side U-Channel (1 Hole, 48mm Length) | SKU: 1121-0001-0048 x 4 |
| Qty: 2 | 1121 Series Low-Side U-Channel (3 Hole, 96mm Length) | SKU: 1121-0003-0096 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (5 Hole, 144mm Length) | SKU: 1121-0005-0144 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (9 Hole, 240mm Length) | SKU: 1121-0009-0240 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (13 Hole, 336mm Length) | SKU: 1121-0013-0336 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (17 Hole, 432mm Length) | SKU: 1121-0017-0432 x 2 |
| Qty: 2 | 1113 Series L-Channel (1 Hole, 48mm Length) | SKU: 1113-0001-0048 x 2 |
Extrusion:
| Qty: 2 | 1109 Series goRAIL (336mm Length) | SKU: 1109-0024-0336 x 2 |
| Qty: 2 | 1109 Series goRAIL (384mm Length) | SKU: 1109-0024-0384 x 2 |
| Qty: 2 | 4103 Series goTUBE (48mm Length) | SKU: 4103-0032-0048 x 2 |
| Qty: 2 | 4103 Series goTUBE (144mm Length) | SKU: 4103-0032-0144 x 2 |
Pattern Plates:
| Qty: 2 | 1123 Series Pattern Plate (1 x 1 Hole, 48 x 48mm) | SKU: 1123-0048-0048 x 2 |
| Qty: 2 | 1123 Series Pattern Plate (1 x 2 Hole, 48 x 72mm) | SKU: 1123-0048-0072 x 2 |
| Qty: 2 | 1123 Series Pattern Plate (1 x 3 Hole, 48 x 96mm) | SKU: 1123-0048-0096 x 2 |
| Qty: 2 | 1123 Series Pattern Plate (1 x 5 Hole, 48 x 144mm) | SKU: 1123-0048-0144 x 2 |
| Qty: 2 | 1123 Series Pattern Plate (1 x 7 Hole, 48 x 192mm) | SKU: 1123-0048-0192 x 2 |
| Qty: 2 | 1123 Series Pattern Plate (1 x 9 Hole, 48 x 240mm) | SKU: 1123-0048-0240 x 2 |

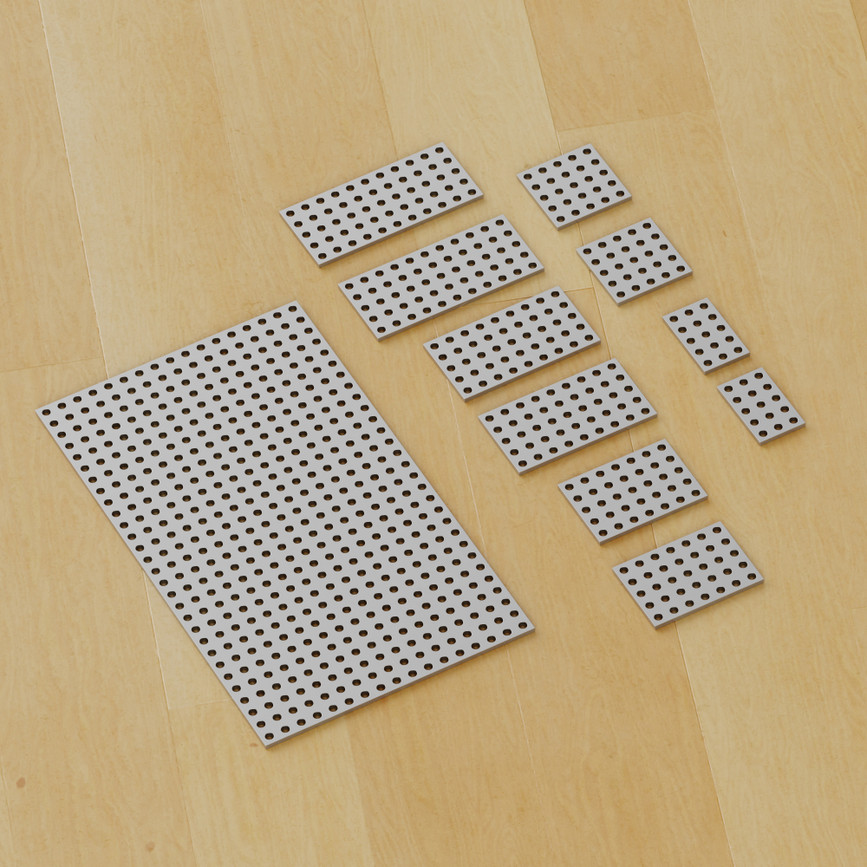

Grid Plates:
| Qty: 2 | 1116 Series Grid Plate (3 x 5 Hole, 24 x 40mm) | SKU: 1116-0024-0040 x 2 |
| Qty: 2 | 1116 Series Grid Plate (5 x 5 Hole, 40 x 40mm) | SKU: 1116-0040-0040 x 2 |
| Qty: 2 | 1116 Series Grid Plate (5 x 7 Hole, 40 x 56mm) | SKU: 1116-0040-0056 x 2 |
| Qty: 2 | 1116 Series Grid Plate (5 x 9 Hole, 40 x 72mm) | SKU: 1116-0040-0072 x 2 |
| Qty: 2 | 1116 Series Grid Plate (5 x 11 Hole, 40 x 88mm) | SKU: 1116-0040-0088 x 2 |
| Qty: 1 | 1116 Series Grid Plate (17 x 29 Hole, 136 x 232mm) | SKU: 1116-0136-0232 x 1 |
Square Beams:
| Qty: 4 | 1106 Series Square Beam (5 Hole, 40mm Length) | SKU: 1106-0005-0040 x 4 |
| Qty: 4 | 1106 Series Square Beam (9 Hole, 72mm Length) | SKU: 1106-0009-0072 x 4 |
| Qty: 4 | 1106 Series Square Beam (13 Hole, 104mm Length) | SKU: 1106-0013-0104 x 4 |
U-Beams:
| Qty: 2 | 1101 Series U-Beam (1 Hole, 8mm Length) | SKU: 1101-0001-0008 x 2 |
| Qty: 2 | 1101 Series U-Beam (3 Hole, 24mm Length) | SKU: 1101-0003-0024 x 2 |
| Qty: 2 | 1101 Series U-Beam (5 Hole, 40mm Length) | SKU: 1101-0005-0040 x 2 |
| Qty: 2 | 1101 Series U-Beam (7 Hole, 56mm Length) | SKU: 1101-0007-0056 x 2 |
| Qty: 2 | 1101 Series U-Beam (9 Hole, 72mm Length) | SKU: 1101-0009-0072 x 2 |
| Qty: 2 | 1101 Series U-Beam (13 Hole, 104mm Length) | SKU: 1101-0013-0104 x 2 |
| Qty: 2 | 1101 Series U-Beam (41 Hole, 328mm Length) | SKU: 1101-0041-0328 x 2 |
L-Beams:
| Qty: 2 | 1103 Series L-Beam (1 Hole, 8mm Length) | SKU: 1103-0001-0008 x 1 |
| Qty: 2 | 1103 Series L-Beam (5 Hole, 40mm Length) | SKU: 1103-0005-0040 x 1 |
| Qty: 2 | 1103 Series L-Beam (7 Hole, 56mm Length) | SKU: 1103-0007-0056 x 1 |
| Qty: 2 | 1103 Series L-Beam (9 Hole, 72mm Length) | SKU: 1103-0009-0072 x 1 |
| Qty: 2 | 1103 Series L-Beam (13 Hole, 104mm Length) | SKU: 1103-0013-0104 x 1 |
| Qty: 2 | 1103 Series L-Beam (29 Hole, 232mm Length) | SKU: 1103-0029-0232 x 1 |
| Qty: 2 | 1103 Series L-Beam (41 Hole, 328mm Length) | SKU: 1103-0041-0328 x 1 |
Flat Beams:
| Qty: 2 | 1102 Series Flat Beam (5 Hole, 40mm Length) | SKU: 1102-0005-0040 x 1 |
| Qty: 2 | 1102 Series Flat Beam (7 Hole, 56mm Length) | SKU: 1102-0007-0056 x 1 |
| Qty: 2 | 1102 Series Flat Beam (9 Hole, 72mm Length) | SKU: 1102-0009-0072 x 1 |
| Qty: 2 | 1102 Series Flat Beam (13 Hole, 104mm Length) | SKU: 1102-0013-0104 x 1 |
| Qty: 2 | 1102 Series Flat Beam (29 Hole, 232mm Length) | SKU: 1102-0029-0232 x 1 |
| Qty: 2 | 1102 Series Flat Beam (41 Hole, 328mm Length) | SKU: 1102-0041-0328 x 1 |

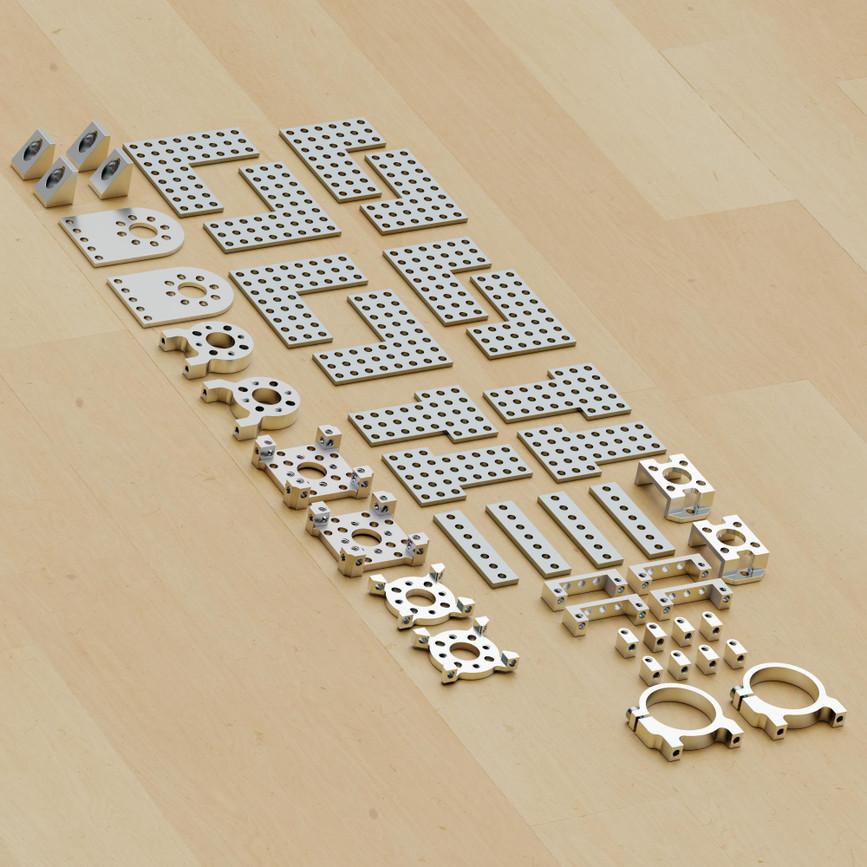

Brackets and Mounts:
| Qty: 2 | 1108 Series Flat Pattern Bracket (1-1) | SKU: 1108-0001-0001 x 2 |
| Qty: 1 | 1200 Series 1-Side, 2-Post Pattern Mount (24-1) | SKU: 1200-0024-0001 x 1 |
| Qty: 1 | 1200 Series 1-Side, 2-Post Pattern Mount (32-1) | SKU: 1200-0032-0001 x 1 |
| Qty: 4 | 1205 Series Dual Block Mount (1-2) | SKU: 1205-0001-0002 x 2 |
| Qty: 4 | 1126 Series Steel Flat Bracket (1-1) | SKU: 1126-0001-0001 x 2 |
| Qty: 4 | 1137 Series Steel Flat Grid Bracket (1-1) | SKU: 1137-0001-0001 x 2 |
| Qty: 4 | 1137 Series Steel Flat Grid Bracket (1-2) | SKU: 1137-0001-0002 x 2 |
| Qty: 4 | 1137 Series Steel Flat Grid Bracket (2-1) | SKU: 1137-0002-0001 x 2 |
| Qty: 2 | 1201 Series Quad Block Pattern Mount (43-2) | SKU: 1201-0043-0002 x 2 |
| Qty: 8 | 1203 Series Block Mount (1-1) | SKU: 1203-0001-0001 x 2 |
| Qty: 2 | 1208 Series Surface Mount (1-2) | SKU: 1208-0001-0002 x 2 |
| Qty: 2 | 1221 Series 2-Side, 2-Post Pattern Mount (32-1) | SKU: 1221-0032-0001 x 2 |
| Qty: 4 | 1204 Series Gusseted Angle Mount (1-2) | SKU: 1204-0001-0002 x 2 |
| Qty: 2 | 1400 Series 1-Side, 2-Post Clamping Mount (32mm Bore) | SKU: 1400-0032-0032 x 2 |
Standoffs and Spacers:
| Qty: 2 | 1504 Series 32mm OD Pattern Spacer (4mm Length) | SKU: 1504-0032-0040 x 2 |
| Qty: 2 | 1504 Series 32mm OD Pattern Spacer (12mm Length) | SKU: 1504-0032-0120 x 2 |
| Qty: 4 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 12mm Length) | SKU: 1501-0006-0120 x 1 |
| Qty: 4 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 24mm Length) | SKU: 1501-0006-0240 x 1 |
| Qty: 4 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) | SKU: 1501-0006-0430 x 1 |
| Qty: 4 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 48mm Length) | SKU: 1501-0006-0480 x 1 |
| Qty: 4 | 1502 Series 4mm ID Spacer (6mm OD, 4mm Length) | SKU: 1502-0006-0040 x 1 |
| Qty: 4 | 1502 Series 4mm ID Spacer (6mm OD, 8mm Length) | SKU: 1502-0006-0080 x 1 |
| Qty: 4 | 1502 Series 4mm ID Spacer (6mm OD, 12mm Length) | SKU: 1502-0006-0120 x 1 |
| Qty: 4 | 1502 Series 4mm ID Spacer (6mm OD, 24mm Length) | SKU: 1502-0006-0240 x 1 |
| Qty: 48 | 1500 Series Plastic Spacer (6mm ID x 8mm OD, 1mm Thickness) | SKU: 1500-0010-0006 x 4 |
Gears:
| Qty: 1 | 2301 Series Brass, MOD 0.8, D-Bore, Set Screw Pinion Gear (6mm D-Bore, 20 Tooth) | SKU: 2301-0006-0020 x 1 |
| Qty: 2 | 2303 Series Steel, MOD 0.8 Pinion Gear (6mm D-Bore, 30 Tooth) | SKU: 2303-1006-0030 x 2 |
| Qty: 1 | 2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 12 Tooth) | SKU: 2305-0025-0012 x 1 |
| Qty: 1 | 2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 20 Tooth) | SKU: 2305-0025-0020 x 1 |
| Qty: 2 |
2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 60 Tooth) | SKU: 2302-0014-0060 x 2 |
| Qty: 2 | 2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 90 Tooth) | SKU: 2302-0014-0090 x 2 |
| Qty: 1 | 2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 100 Tooth) | SKU: 2302-0014-0100 x 1 |
| Qty: 1 | 2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 108 Tooth) | SKU: 2302-0014-0108 x 1 |
Sprockets and Chain:
| Qty: 2 | 3311 Series 8mm Pitch Plastic Hub Mount Sprocket (14mm Bore, 20 Tooth) | SKU: 3311-0014-0020 x 2 |
| Qty: 2 | 3311 Series 8mm Pitch Plastic Hub Mount Sprocket (14mm Bore, 30 Tooth) | SKU: 3311-0014-0030 x 2 |
| Qty: 2 | 3311 Series 8mm Pitch Plastic Hub Mount Sprocket (14mm Bore, 40 Tooth) | SKU: 3311-0014-0040 x 2 |
| Qty: 100 | 3309 Series 8mm Pitch Plastic Chain Link | SKU: 3309-0108-0050 x 2 |
Wheels:
| Qty: 4 | 3601 Series Rhino Wheel (14mm Bore, 96mm Diameter) | SKU: 3601-0014-0096 x 4 |
| Qty: 4 | 3604 Series Omni Wheel (14mm Bore, 96mm Diameter) | SKU: 3604-0014-0096 x 4 |
Bearings:
| Qty: 24 | 1611 Series Flanged Ball Bearing (6mm ID x 14mm OD, 5mm Thickness) | SKU: 1611-0514-0006 x 12 |
| Qty: 1 | 1603 Series Face Thru-Hole Pillow Block (10mm Bore) | SKU: 1603-0032-0010 x 1 |
Shafting:
| Qty: 8 | 2101 Series Stainless Steel D-Shaft (6mm Diameter, 100mm Length) | SKU: 2101-0006-0100 x 8 |
| Qty: 4 | 2101 Series Stainless Steel D-Shaft (6mm Diameter, 140mm Length) | SKU: 2101-0006-0140 x 4 |
| Qty: 2 | 2101 Series Stainless Steel D-Shaft (6mm Diameter, 180mm Length) | SKU: 2101-0006-0180 x 2 |
| Qty: 2 | 2101 Series Stainless Steel D-Shaft (6mm Diameter, 220mm Length) | SKU: 2101-0006-0220 x 2 |
| Qty: 2 | 2101 Series Stainless Steel D-Shaft (6mm Diameter, 300mm Length) | SKU: 2101-0006-0300 x 2 |
Hubs, Couplers and Collars:
| Qty: 2 | 1308 Series Lightweight Set Screw Hub (6mm D-Bore) | SKU: 1308-0016-1006 x 2 |
| Qty: 12 | 1309 Series Sonic Hub (6mm D-Bore) | SKU: 1309-0016-1006 x 12 |
| Qty: 16 | 2906 Series Aluminum Set Screw Collar (6mm Bore, 8mm Length) | SKU: 2906-0006-0008 x 8 |
| Qty: 2 | 4000 Series Clamping Shaft Coupler (6mm Round Bore to 6mm Round Bore) | SKU: 4000-0006-0006 x 2 |
Linear Motion:
| Qty: 2 | 3700 Series 14.5mm V-Guide (288mm Length) | SKU: 3700-0145-0288 x 2 |
| Qty: 4 | 1609 Series V-Groove Bearing (4mm ID x 13mm OD, 6mm Thickness) | SKU: 1609-0613-0004 x 2 |
Screws:
| Qty: 200 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 6mm Length) | SKU: 2800-0004-0006 x 8 |
| Qty: 200 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length) | SKU: 2800-0004-0008 x 8 |
| Qty: 100 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 10mm Length) | SKU: 2800-0004-0010 x 4 |
| Qty: 100 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) | SKU: 2800-0004-0012 x 4 |
| Qty: 25 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 16mm Length) | SKU: 2800-0004-0016 x 1 |
| Qty: 25 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 60mm Length) | SKU: 2800-0004-0060 x 1 |
Nuts:
| Qty: 50 | 2811 Series Zinc-Plated Steel Hex Nut (M4 x 0.7mm, 7mm Hex) | SKU: 2811-0004-0007 x 2 |
| Qty: 400 | 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) | SKU: 2812-0004-0007 x 16 |
| Qty: 16 | 2805 Series Zinc-Plated Steel goRAIL Nut (4-8) | SKU: 2805-0004-0008 x 4 |
Washers:
| Qty: 250 | 2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) | SKU: 2801-0004-0008 x 10 |
| Qty: 50 | 2809 Series Zinc-Plated Steel Split-Lock Washer (4mm ID x 7mm OD) | SKU: 2809-0004-0007 x 2 |
| Qty: 50 | 2810 Series Zinc-Plated Steel External - Tooth Lock Washer (4mm ID x 8mm OD) | SKU: 2810-0004-0008 x 2 |
Linkages:
| Qty: 2 | 2808 Series Stainless Steel Threaded Rod (M4 x 0.7mm, 300mm Length) | SKU: 2808-0004-0300 x 1 |
| Qty: 4 | 2903 Series Nylon Ball Linkage (M4, 24.5mm Length) | SKU: 2903-0004-0245 x 1 |
Hinges:
| Qty: 2 | 2902 Series Hinge (5 Hole, 38mm Length) | SKU: 2902-0005-0038 x 2 |
Wire Management:
| Qty: 12 | Plastic Grommet (14-1) | SKU: 2911-0014-0001 x 1 |
| Qty: 100 | Zip Tie (100mm Length, Black) | SKU: 2909-0101-0100 x 1 |
Tools:
| Qty: 2 | 2.5mm Hex L-Key | SKU: 4200-0090-0025 x 2 |
| Qty: 2 | 3mm Ball-End Hex L-Key | SKU: 4201-0090-0030 x 2 |
| Qty: 1 | 7mm Combination Wrench | SKU: 4202-0070-1070 x 1 |
