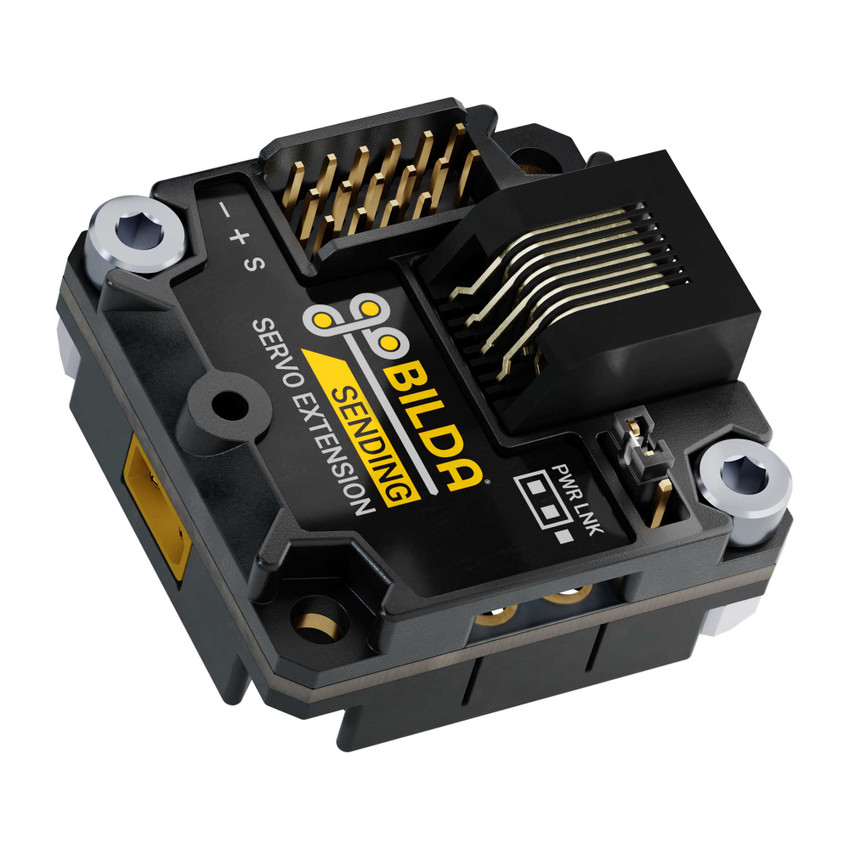

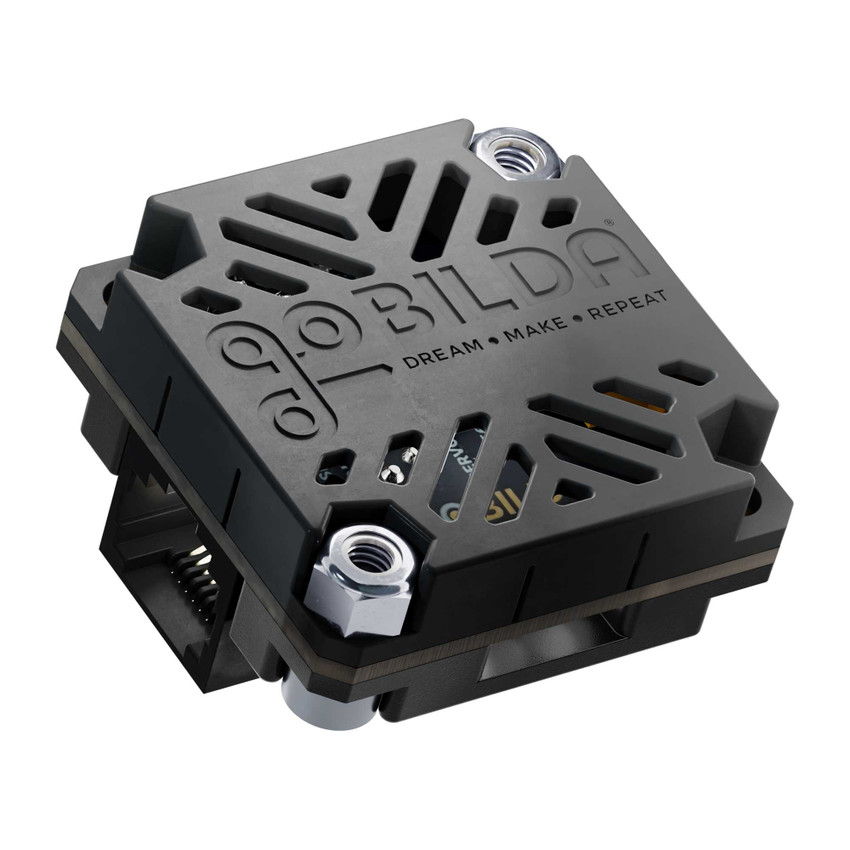

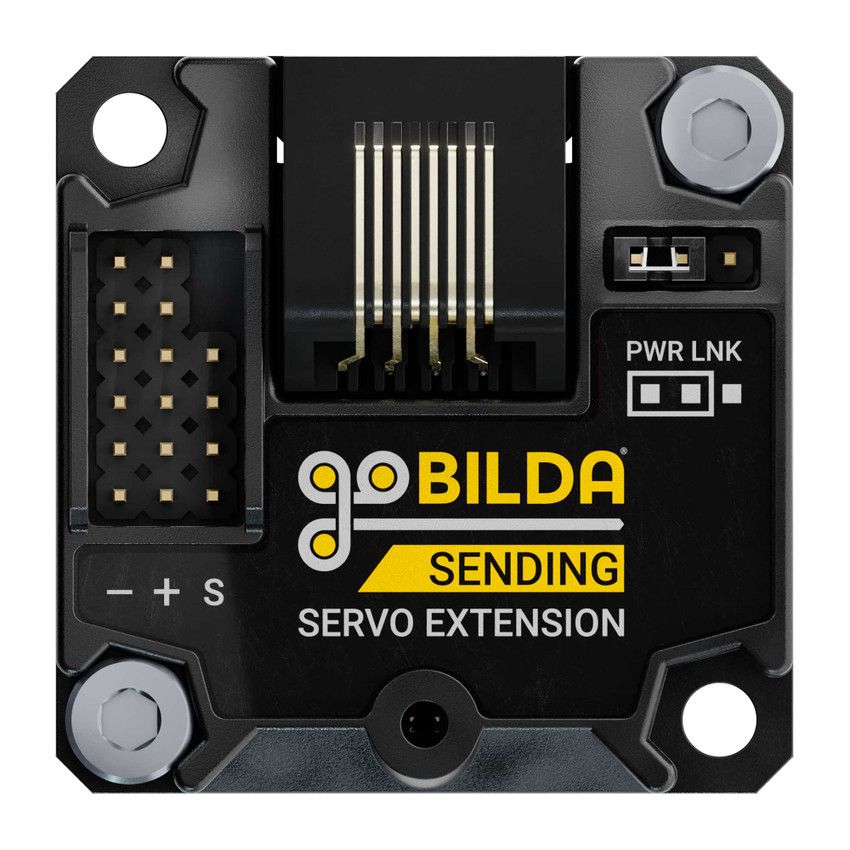

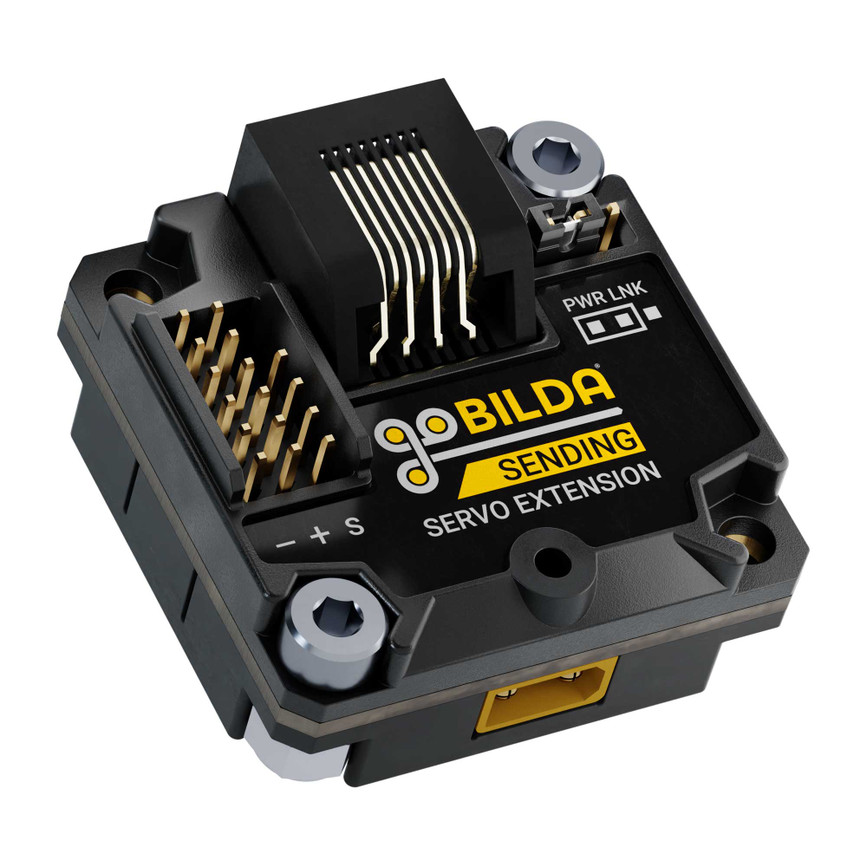

Servo Extension via CAT6 (Sending Board)
SKU:
$14.99
This board takes a servo signal from an RC receiver or other source and sends it through a CAT6 cable via an RJ45 port. This Sending Board is the counterpart to the Receiving Board (3116-4527-0001). The two can be purchased together as 3802-2745-4527.
Compatibility
Ethernet Cables: While CAT6 is the recommended cable, the RJ45 connector this Servo Extension uses is also compatible with CAT5, CAT5e, CAT6a, and CAT8 cables.
RC Receivers: This Boosted Servo Extension is compatible with any receiver which uses a PWM signal. That's just about any receiver in the hobby or small-medium robotics industries.
Specs
| Weight | 23g (0.81oz) |
|---|---|
| Recommended Voltage Range | 6V - 15V |
| Max Voltage Range | 3.3V - 18V |
| Signal Channels | 4 |
| Max Current (When powered at Receiving Board) | 16A Total (4A per Channel) |
| Max Current over CAT6 (When powered at Sending Board) | 4A Total |
| Servo Compatibility | Analog & Digital |
| Maximum Recommended Ethernet Cable Length | 100ft (30M) |
| Power Compatibility | TJC8, XT30, 3mm Solder Holes |
