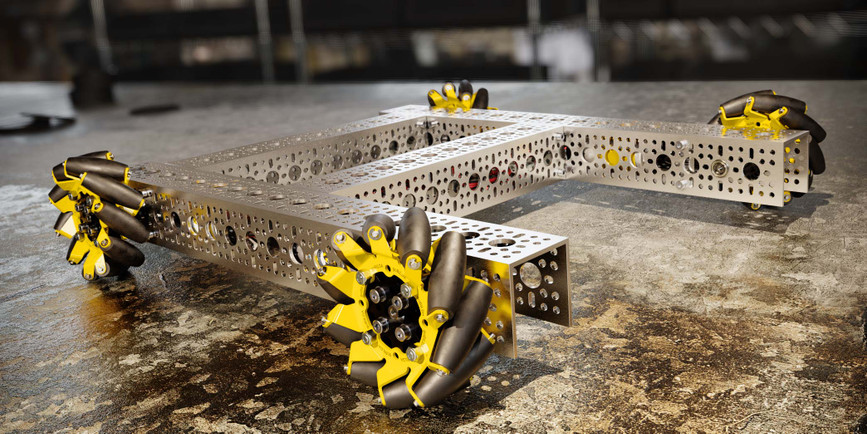

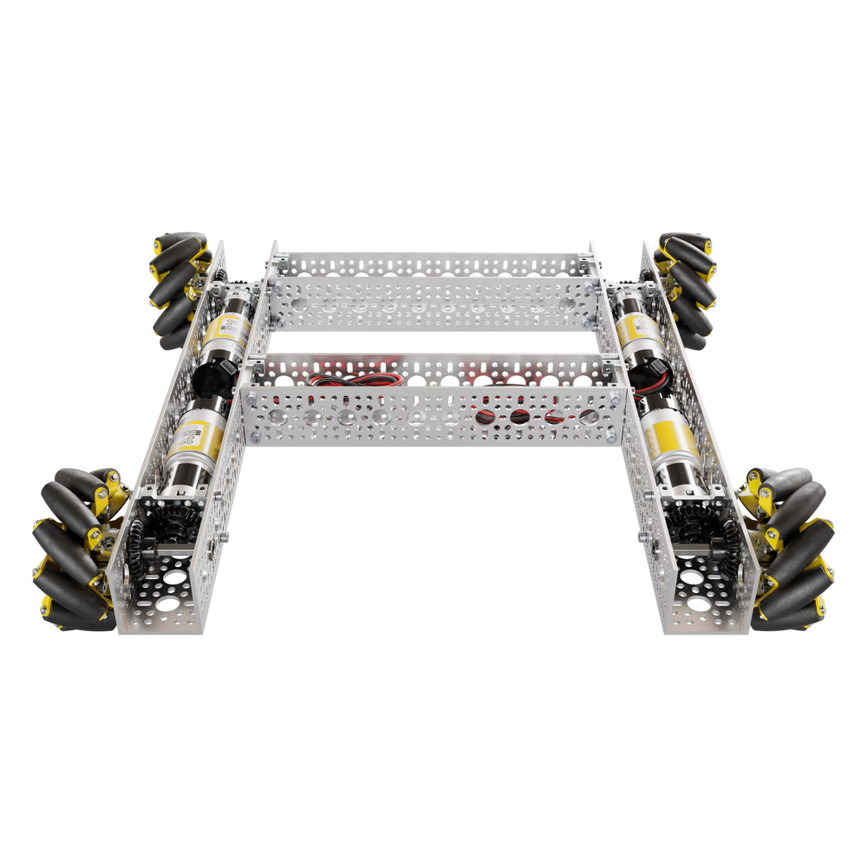

Strafer® Chassis Kit V3

This product has been discontinued. It has been replaced by the Strafer® Chassis Kit V4 (3209-0001-0004).

The Strafer® Chassis Kit is a rigid, low-profile chassis that includes high-torque 312RPM planetary motors, ball-bearing mecanum wheels and a configurable chassis you can tailor to your liking.

Motors

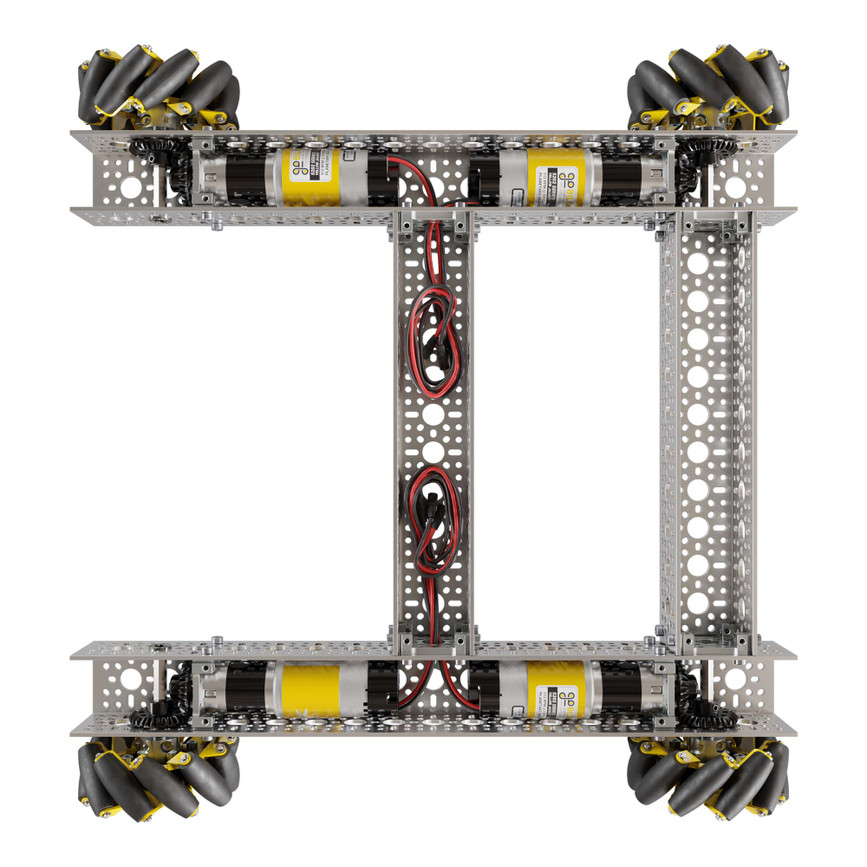

At a glance, you might wonder, where are the motors? Flip it over and you’ll notice the nested 312RPM 5202 Series Planetary Gear Motors. Combined with the 96mm wheels, they give the chassis a theoretical speed of over 5.14 ft/sec. These motors drive all steel miter gears, heavy duty hubs, and ball-bearings ready for some low-friction strafing action!

Miter Gears
The miter gears, located near each of the four corners of the chassis, create a 90° drive so that the motors can nest inside the 1120 Series U-Channel.  The miters have been battle-tested, even with brushless motors, and are extremely stout.  Don’t worry about slipping as the bores are matched to the profile of the shafts they are mount to.

Bearings
Each 8mm REX shaft is supported in a pair of 8mm REX flanged bearings in order to maximize the torque transferred from the motors to the shafts.

Wheels
The goBILDA® Mecanum Wheels are 96mm in diameter, have ball-bearing supported rollers, a narrow profile and steel side plates. Each wheels is only 207g, far less than the competitors. The reduced rotating mass yields quicker acceleration with less strain on the motors.

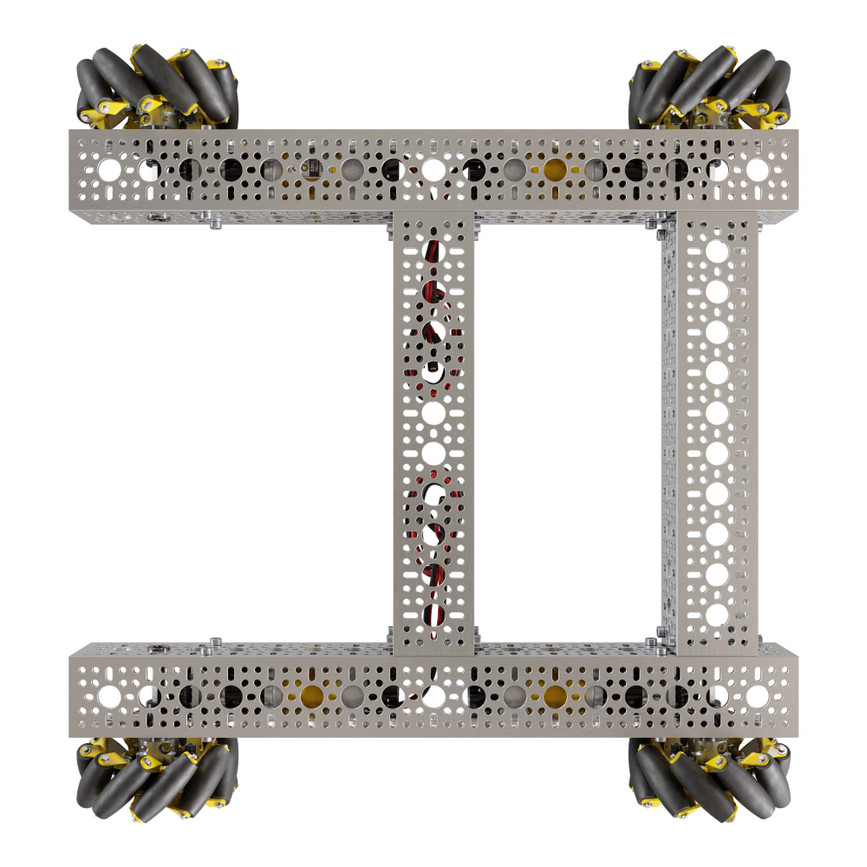

Frame
The channel framework allows you to pack all these premium parts in without having to clad on to the outside like some frames require. And oh-so configurable - move the center channels, adjust your track-width and more all with the same parts we provide.
